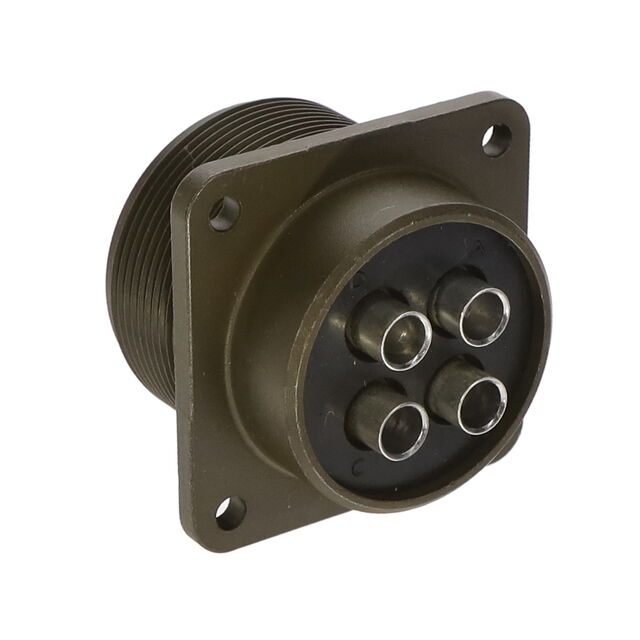

MS3102A24-22S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 4P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3102A24-22S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 4P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3102A24-22S |
|---|---|
| Applications | Military, Marine |
| Cable Opening [custom] | 34.93 mm |
| Cable Opening [custom] | 1.375 in |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 24-22 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.49 | |
| 10 | $ 35.46 | |||
| 25 | $ 33.92 | |||
| 50 | $ 32.83 | |||
| 100 | $ 31.74 | |||
| 250 | $ 29.98 | |||
Description
General part information
MS3102A24 Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
