Q-0104D00010.5M

Active

Amphenol Custom Cable

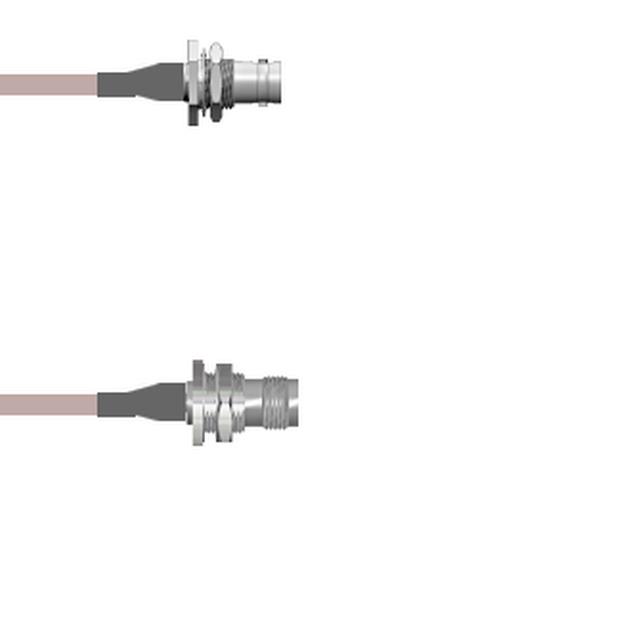

CBL ASSY BNC-TNC JCK-JCK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0104D00010.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JCK-JCK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0104D00010.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0104D0 Series

Part	2nd Contact Gender	Features	2nd Connector Mounting Feature	Frequency - Max [Max]	2nd Connector	Color	Style	Overall Impedance	1st Connector	Cable Type	1st Connector Mounting Type	Length	Length	Length	1st Connector Mounting Feature	2nd Connector Mounting Type	1st Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0104D0001048i	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount	1200 mm	4 ft	48 in	Bulkhead - Front Side Nut	Panel Mount	Female
Amphenol Custom Cable Q-0104D0001006i	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount	152.4 mm		6 in	Bulkhead - Front Side Nut	Panel Mount	Female
Amphenol Custom Cable Q-0104D0001084i	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount	2.1 m	7 ft	84 in	Bulkhead - Front Side Nut	Panel Mount	Female
Amphenol Custom Cable Q-0104D0001003i	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount	76.2 mm		3 in	Bulkhead - Front Side Nut	Panel Mount	Female
Amphenol Custom Cable Q-0104D00010.5M	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount	50 cm		19.69 "	Bulkhead - Front Side Nut	Panel Mount	Female
Amphenol Custom Cable Q-0104D0001060i	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount	1.5 m	5 ft	5 '	Bulkhead - Front Side Nut	Panel Mount	Female
Amphenol Custom Cable Q-0104D0001018i	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount				Bulkhead - Front Side Nut	Panel Mount	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0104D00011.5M	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount	1.5 m	4.9 ft	59.1 in	Bulkhead - Front Side Nut	Panel Mount	Female
Amphenol Custom Cable Q-0104D0001072i	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount	1.8 m	6 ft	72 in	Bulkhead - Front Side Nut	Panel Mount	Female
Amphenol Custom Cable Q-0104D0001012i	Female	Shielded	Bulkhead - Front Side Nut	4 GHz	TNC Jack	Copper	BNC to TNC	50 Ohms	BNC Jack	RG-178	Panel Mount	304.8 mm		12 "	Bulkhead - Front Side Nut	Panel Mount	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 93.51
		25	$ 92.70
		50	$ 91.89
		100	$ 91.08
		250	$ 90.28

Description

General part information

Q-0104D0 Series

Cable Assembly Coaxial BNC to TNC RG-178 19.69" (500.00mm)
