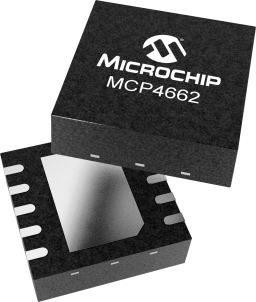

MCP4662T-104E/MF
ActiveDIGITAL POTENTIOMETER 100KOHM 256POS NON-VOLATILE LINEAR AUTOMOTIVE AEC-Q100 10-PIN DFN EP T/R
Deep-Dive with AI
Search across all available documentation for this part.
MCP4662T-104E/MF
ActiveDIGITAL POTENTIOMETER 100KOHM 256POS NON-VOLATILE LINEAR AUTOMOTIVE AEC-Q100 10-PIN DFN EP T/R
Technical Specifications
Parameters and characteristics for this part
| Specification | MCP4662T-104E/MF |
|---|---|
| Configuration | Rheostat |
| Features | Selectable Address, Mute |
| Interface | I2C |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Number of Taps | 257 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-VFDFN Exposed Pad |
| Resistance - Wiper (Ohms) (Typ) | 75 Ohms |
| Resistance (Ohms) | 100 kOhms |
| Supplier Device Package | 10-DFN (3x3) |
| Taper | Linear |
| Temperature Coefficient (Typ) | 150 ppm/°C |
| Tolerance | 20 % |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.66 | |
| 25 | $ 1.39 | |||
| 100 | $ 1.26 | |||
| Digi-Reel® | 1 | $ 1.66 | ||
| 25 | $ 1.39 | |||
| 100 | $ 1.26 | |||
| Tape & Reel (TR) | 3300 | $ 1.26 | ||
| Microchip Direct | T/R | 1 | $ 1.66 | |
| 25 | $ 1.39 | |||
| 100 | $ 1.26 | |||
| 1000 | $ 1.23 | |||
| 5000 | $ 1.22 | |||
| Newark | Each (Supplied on Full Reel) | 100 | $ 1.30 | |
Description
General part information
mcp4662 Series
The MCP466X devices are dual channel, non-volatile, 8-bit (257 wiper steps) digital potentiometers with EEPROM and an I2C compatible interface. The MCP466X family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer WiperLock™ Technology which allows the user unlimited reprogramming and locking of the wiper setting. It is useful for equipment that requires factory trimming or recalibration. The MCP466X devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.
