999-19-210-00

Active

PRECI-DIP SA

JUMPER MALE 2.54MM

Search across all available documentation for this part.

Active

PRECI-DIP SA

JUMPER MALE 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	999-19-210-00

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	0.197 "
Height [z]	5 mm
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Closed Top

Part	Housing Material	Pitch [x]	Pitch [x]	Color	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Gender	Material Flammability Rating	Height [z]	Height [z]	Type	Contact Finish Thickness	Current Rating (Amps)
PRECI-DIP SA 999-19-310-02	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	Red	Gold	1 x 2	2	Female Sockets	UL94 V-0	0.197 "	5 mm	Closed Top	Flash	3 A
PRECI-DIP SA 999-19-210-00	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	Black	Gold	1 x 2	2	Female Sockets	UL94 V-0	0.197 "	5 mm	Closed Top	Flash	3 A
PRECI-DIP SA 999-19-320-00	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	Black	Gold	1 x 2	2	Female Sockets	UL94 V-0	0.197 "	5 mm	Closed Top	Flash	3 A
PRECI-DIP SA 999-19-220-00	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	Black	Gold	1 x 2	2	Female Sockets	UL94 V-0	0.197 "	5 mm	Closed Top	Flash	3 A
PRECI-DIP SA 999-19-210-06	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	Blue	Gold	1 x 2	2	Female Sockets	UL94 V-0	0.197 "	5 mm	Closed Top	Flash	3 A
PRECI-DIP SA 999-19-210-02		2.54 mm	0.1 in	Red	Gold	1 x 2	2	Female Sockets		0.197 "	5 mm	Closed Top	Flash
PRECI-DIP SA 999-19-310-00	Polybutylene Terephthalate (PBT) Glass Filled	2.54 mm	0.1 in	Black	Gold	1 x 2	2	Female Sockets	UL94 V-0	0.197 "	5 mm	Closed Top	Flash	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

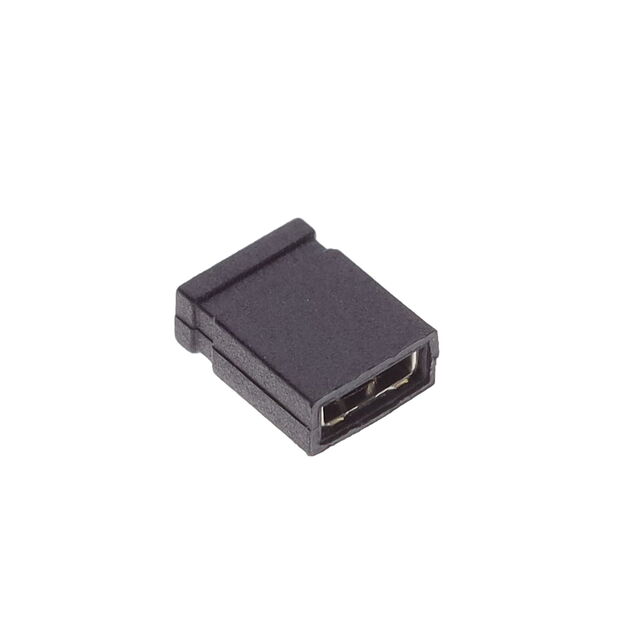

2 (1 x 2) Position Shunt Connector Black Closed Top 0.100" (2.54mm) Gold

Technical documentation and resources

No documents available
