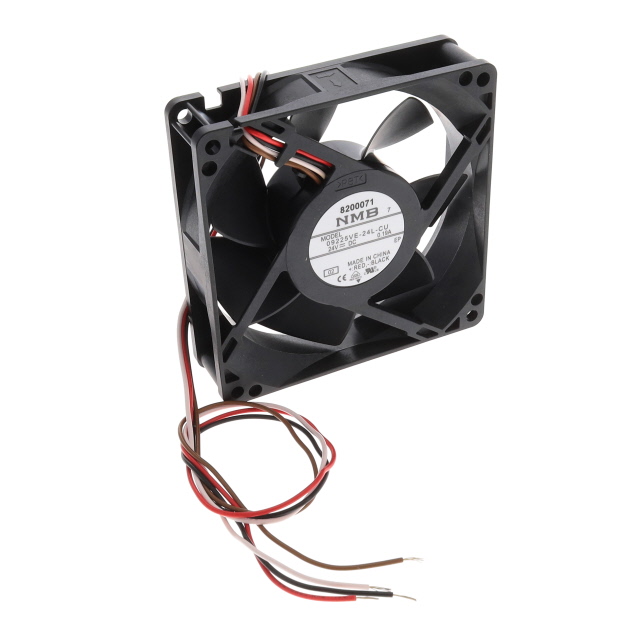

09225VE-24L-CU-02

Active

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 24VDC WIRE

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	09225VE-24L-CU-02

Air Flow	1.78 mł/min
Air Flow	63.5 CFM
Approval Agency	CE, cULus, VDE
Bearing Type	Ball
Current Rating (Amps)	140 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	100000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	38.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.36 W
RPM	3700 RPM
Static Pressure	69.7 Pa
Static Pressure	0.28 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	14 VDC
Width [y]	25 mm

Part	Air Flow	Air Flow	Width [y]	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Material - Blade	Current Rating (Amps)	Static Pressure	Static Pressure	RPM	Termination	Noise	Material - Frame	Bearing Type	Power (Watts)	Lifetime @ Temp.	Approval Agency
NMB TECHNOLOGIES 09225VE-24L-CU-02	1.78 mł/min	63.5 CFM	25 mm	27.6 VDC	14 VDC	24 VDC	Auto Restart PWM Control Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	140 mA	69.7 Pa	0.28 in H2O	3700 RPM	4 Wire Leads	38.5 dB	Plastic	Ball	3.36 W	100000 Hrs	CE cULus VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 63.5 CFM (1.78m³/min) 4 Wire Leads
