19412160723

Active

HARTING Technology Group

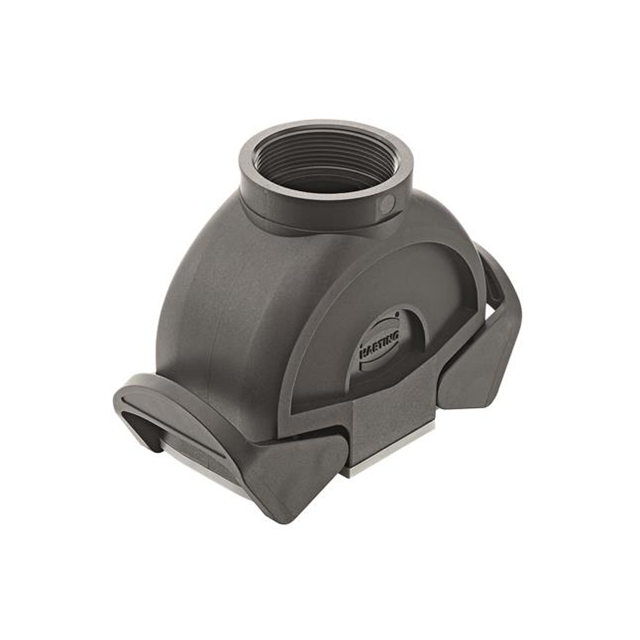

HAN-ECO MODULAR 16B COUPLER HOOD M40 W/O GLAND - OUTDOOR

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 16B COUPLER HOOD M40 W/O GLAND - OUTDOOR

Technical Specifications

Parameters and characteristics for this part

Specification	19412160723

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Style	Bottom Entry

Part	Housing Material	Ingress Protection	Lock Location	Size	Housing Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Features	Connector Type
HARTING Technology Group 19412160723	Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Hood Top	16 B	Black	Bottom Entry	125 °C	-40 °C	Cable to Cable	Hood - Coupling
HARTING Technology Group 19412160301	Polyamide (PA) Nylon Glass Filled	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	16 B	Black	Bottom Entry	125 °C	-40 °C		Base - Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Bottom Entry M40 16B IP65 - Dust Tight, Water Resistant
