0347720140
ActiveMolex

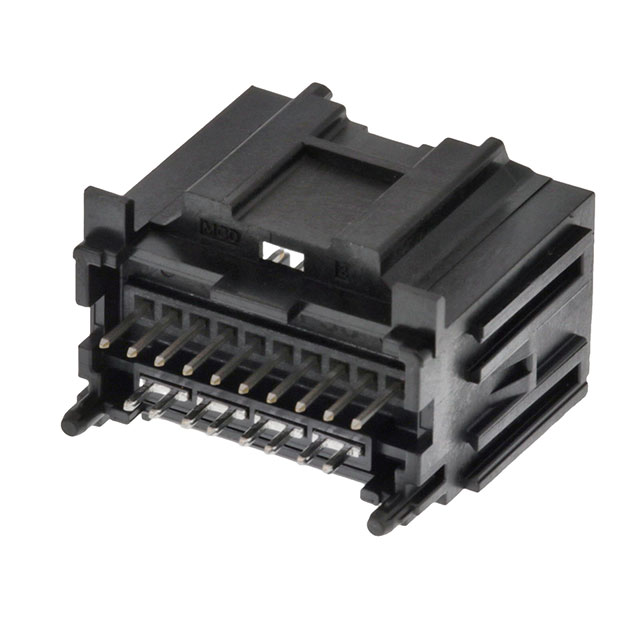

CONN HEADER VERT 14POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0347720140
ActiveMolex
CONN HEADER VERT 14POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0347720140 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.117 in |
| Contact Length - Post | 2.97 mm |
| Contact Shape | Square, Rectangular |
| Contact Type | Male Pin, Male Blade |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 28.04 mm |
| Insulation Height | 1.104 in |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.88 | |
| 10 | $ 4.53 | |||
| 80 | $ 3.71 | |||
| 440 | $ 3.23 | |||
| 945 | $ 3.06 | |||
Description
General part information
034772 Series
Connector Header Through Hole 14 (10 + 4 Power) position
