FIN0.25BK50
ActiveTechflex
SLEEVING 0.250" ID FBRGLASS 50'
Deep-Dive with AI
Search across all available documentation for this part.
FIN0.25BK50
ActiveTechflex
SLEEVING 0.250" ID FBRGLASS 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FIN0.25BK50 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant, Puncture Resistant |
| Color | Black |
| Diameter - Inside | 6.35 mm |
| Diameter - Inside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 10 mm |
| Diameter - Outside [diameter] | 0.394 in |
| Features | Solvent Resistant, Chemical Resistant |
| Heat Protection | Flame Resistant, Heat Resistant |
| Length | 15.24 m |
| Length [x] | 50 ft |
| Liquid Protection | Gasoline Resistant, Moisture Resistant |
| Material | Halogen Free, Fiberglass, Silicone Coated |
| Material Flammability Rating | Non Flammable |
| Operating Temperature [Max] | 260 ░C |
| Operating Temperature [Min] | -54 °C |
| Type | Sleeving, Insulated |
| Type Attributes | Braided |
| Wall Thickness [custom] | 0.072 in |
| Wall Thickness [custom] | 1.83 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 96.70 | |
| 5 | $ 90.66 | |||
| 10 | $ 84.61 | |||
| 25 | $ 80.38 | |||
| 50 | $ 78.57 | |||
| 100 | $ 76.76 | |||
Description
General part information
FIN0 Series

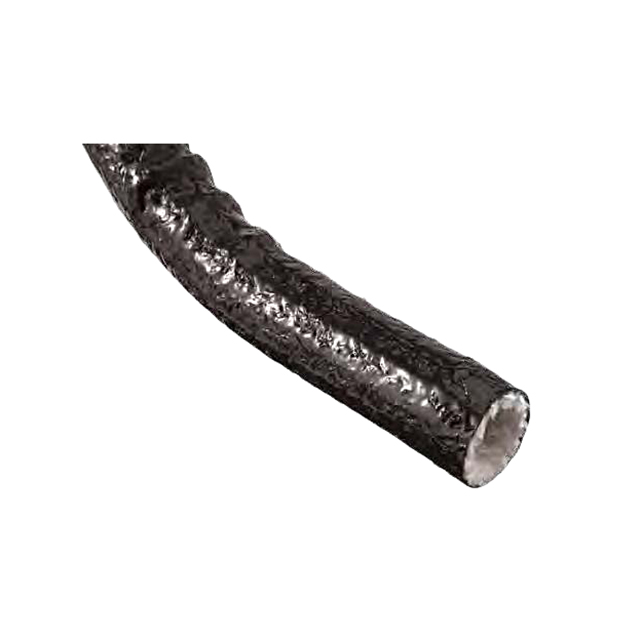

Black Fiberglass, Silicone Coated, Halogen Free Braided Sleeving, Insulated 0.250" (6.35mm) 50.00' (15.24m)
Documents
Technical documentation and resources
