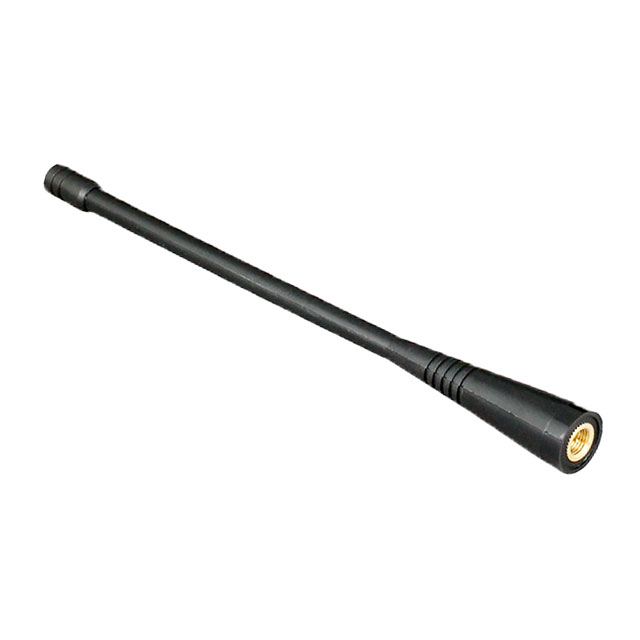

ANT-490-CW-QW-SMA

Active

TE Connectivity Linx

RF ANT 490MHZ WHIP STR SMA PLUG

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT 490MHZ WHIP STR SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Part	Antenna Type	Number of Bands	Frequency Group [Max]	Frequency Group [Min]	Gain	VSWR	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]	Applications	Mounting Type	Features	Height (Max) [Max]	Height (Max) [Max]	Frequency (Center/Band)	RF Family/Standard	Features	Termination
TE Connectivity Linx ANT-490-CW-QW-SMA	Whip Straight	1	1 GHz	300 MHz	1.3 dBi	1.5	470 MHz	510 MHz	10 W	GSM ISM LoRaWAN LTE Sigfox	Connector Mount	O-Ring Compatible	6.209 in	157.7 mm	480 MHz 500 MHz	General ISM
TE Connectivity Linx ANT-490-PW-QW-UFL		1	1 GHz	300 MHz	1.3 dBi		470 MHz	510 MHz	10 W	GSM ISM LoRaWAN LTE Sigfox UMTS						General ISM	216 mm
TE Connectivity Linx ANT-490-PW-QW	Whip Straight	1	1 GHz	300 MHz	1.3 dBi	1.5	470 MHz	510 MHz	10 W	GSM ISM LoRaWAN LTE Sigfox UMTS			6.209 in	157.7 mm		General ISM	216 mm	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.65

General part information

RF ANTENNA GSM, ISM, LoRaWAN, LTE, SIGFOX Whip, Straight SMA Male Connector Mount
