T4112011051-000

Active

TE Connectivity Raychem Cable Protection

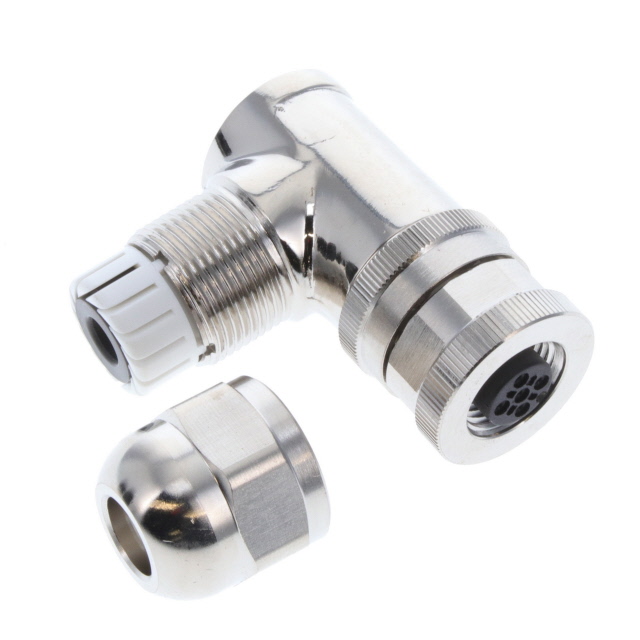

CONN PLUG FMALE 5POS GOLD SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIndustrial M8 & M12 Series Circular connector M12 connection application specification +1

T4112011051-000

Active

TE Connectivity Raychem Cable Protection

CONN PLUG FMALE 5POS GOLD SCREW

Deep-Dive with AI

DocumentsIndustrial M8 & M12 Series Circular connector M12 connection application specification +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T4112011051-000

Applications	Industrial
Backshell Material, Plating	Nickel, Brass
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Zinc Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Screw
Voltage Rating	60 VDC

T41120 Series

Part	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Number of Positions	Insert Material	Shielding	Applications	Current Rating (Amps)	Color	Shell Size - Insert	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Voltage Rating	Contact Material	Mounting Type	Termination	Orientation	Features	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish - Mating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
TE Connectivity Raychem Cable Protection T4112001022-000	Brass	4 mm 6 mm	0.157 in 0.236 in	Glass Filled Polybutylene Terephthalate (PBT)	2	Nylon Polyamide (PA)	Unshielded	Industrial	4 A	Black Silver	M12-2	Metal	2.03 µm	80 µin	IP67 - Dust Tight Waterproof	250 VDC	Bronze	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Silver
TE Connectivity Raychem Cable Protection T4112012042-000	Brass			Brass Nickel	4	Nylon Polyamide (PA)	Shielded	Industrial	4 A	Silver	M12-4	Metal	2.03 µm	80 µin	IP67 - Dust Tight Waterproof	250 VDC	Bronze	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Silver	8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4112002051-000	Brass			Glass Filled Polybutylene Terephthalate (PBT)		Nylon Polyamide (PA)	Unshielded	Industrial	4 A	Black Silver	M12-5	Metal	0.076 µm	3 µin	IP67 - Dust Tight Waterproof	60 VDC	Zinc Alloy	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Gold	8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4112011051-000	Brass	4 mm 6 mm	0.157 in 0.236 in	Brass Nickel		Nylon Polyamide (PA)	Shielded	Industrial	4 A	Silver	M12-5	Metal	0.076 µm	3 µin	IP67 - Dust Tight Waterproof	60 VDC	Zinc Alloy	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Gold
TE Connectivity Raychem Cable Protection T4112001052-000	Brass	4 mm 6 mm	0.157 in 0.236 in	Glass Filled Polybutylene Terephthalate (PBT)		Nylon Polyamide (PA)	Unshielded	Industrial	4 A	Black Silver	M12-5	Metal	2.03 µm	80 µin	IP67 - Dust Tight Waterproof	60 VDC	Bronze	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Silver
TE Connectivity Raychem Cable Protection T4112001051-000	Brass	4 mm 6 mm	0.157 in 0.236 in	Glass Filled Polybutylene Terephthalate (PBT)		Nylon Polyamide (PA)	Unshielded	Industrial	4 A	Black Silver	M12-5	Metal	0.076 µm	3 µin	IP67 - Dust Tight Waterproof	60 VDC	Zinc Alloy	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Gold
TE Connectivity Raychem Cable Protection T4112011042-000	Brass	4 mm 6 mm	0.157 in 0.236 in	Brass Nickel	4	Nylon Polyamide (PA)	Shielded	Industrial	4 A	Silver	M12-4	Metal	2.03 µm	80 µin	IP67 - Dust Tight Waterproof	250 VDC	Bronze	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Silver
TE Connectivity Raychem Cable Protection T4112012021-000	Brass			Brass Nickel	2	Nylon Polyamide (PA)	Shielded	Industrial	4 A	Silver	M12-2	Metal	0.076 µm	3 µin	IP67 - Dust Tight Waterproof	250 VDC	Zinc Alloy	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Gold	8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4112012051-000	Brass			Brass Nickel		Nylon Polyamide (PA)	Shielded	Industrial	4 A	Silver	M12-5	Metal	0.076 µm	3 µin	IP67 - Dust Tight Waterproof	60 VDC	Zinc Alloy	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Gold	8 mm	6 mm	0.315 in	0.236 in
TE Connectivity Raychem Cable Protection T4112001021-000	Brass	4 mm 6 mm	0.157 in 0.236 in	Glass Filled Polybutylene Terephthalate (PBT)	2	Nylon Polyamide (PA)	Unshielded	Industrial	4 A	Black Silver	M12-2	Metal	0.076 µm	3 µin	IP67 - Dust Tight Waterproof	250 VDC	Zinc Alloy	Free Hanging (In-Line) Right Angle	Screw	A	Backshell Coupling Nut	Nickel	85 °C	-40 °C	Female Sockets Plug	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.45
		10	$ 11.26
		25	$ 10.96
		50	$ 10.55
		100	$ 9.77
		250	$ 9.71
		500	$ 9.36
		1000	$ 8.34

Description

General part information

T41120 Series

5 Position Circular Connector Plug, Female Sockets Screw

Documents

Technical documentation and resources

Industrial M8 & M12 Series Circular connector

Datasheet

M12 connection application specification

Datasheet
