TMA-9MS-9MS-00

Active

CarlisleIT

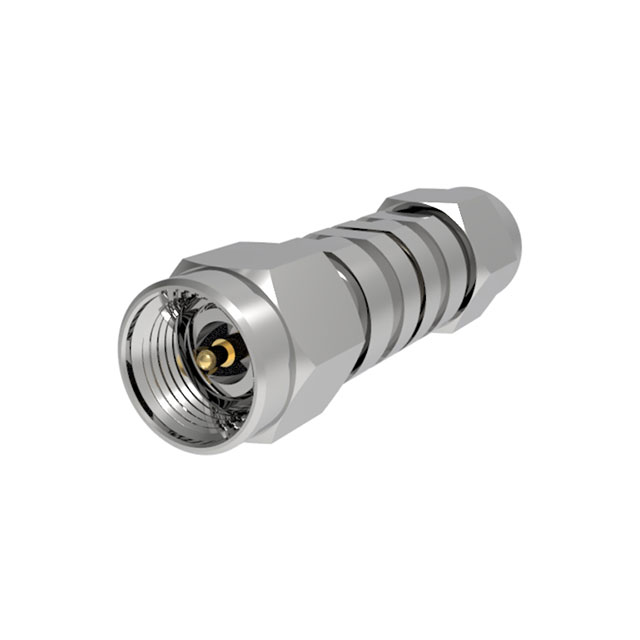

MW ADAPTER 2.92(M) TO 2.92(M)

Search across all available documentation for this part.

Active

CarlisleIT

MW ADAPTER 2.92(M) TO 2.92(M)

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Style	Convert From (Adapter End)	Adapter Type	Center Gender	Convert To (Adapter End)	Adapter Series [Max]	Adapter Series [Min]	Body Material	Conversion Type	Impedance	Center Contact Material	Frequency - Max [Max]	Convert To (Adapter End)
CarlisleIT TMA-9MS-9MS-00	Free Hanging (In-Line)	Straight	2.92 mm	Plug to Plug	Male to Male	2.92mm (OS-2.9) Plug Male Pin	2.92 mm	2.92 mm	Stainless Steel	Same Series	50 Ohms	Beryllium Copper	40 GHz
CarlisleIT TMA-9MS-5MS-00	Free Hanging (In-Line)	Straight	2.92 mm	Plug to Plug	Male to Male		3.5 mm	2.92 mm	Stainless Steel	Between Series	50 Ohms	Beryllium Copper	26.5 GHz
CarlisleIT TMA-9MS-5FS-00	Free Hanging (In-Line)	Straight	2.92 mm	Plug to Jack		3.5mm Jack Female Socket	3.5 mm	2.92 mm	Stainless Steel	Between Series	50 Ohms	Beryllium Copper	26.5 GHz
CarlisleIT TMA-9MS-5MS-00	Free Hanging (In-Line)	Straight	2.92 mm	Plug to Plug	Male to Male		3.5 mm	2.92 mm	Stainless Steel	Between Series	50 Ohms	Beryllium Copper	26.5 GHz
CarlisleIT TMA-9MS-9FS-00	Free Hanging (In-Line)	Straight	2.92 mm	Plug to Jack		OS-2.9 Jack Female Socket	2.92 mm	2.92 mm	Stainless Steel	Same Series	50 Ohms	Beryllium Copper	40 GHz	2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
