Q-0700K000R108i

Active

Amphenol Custom Cable

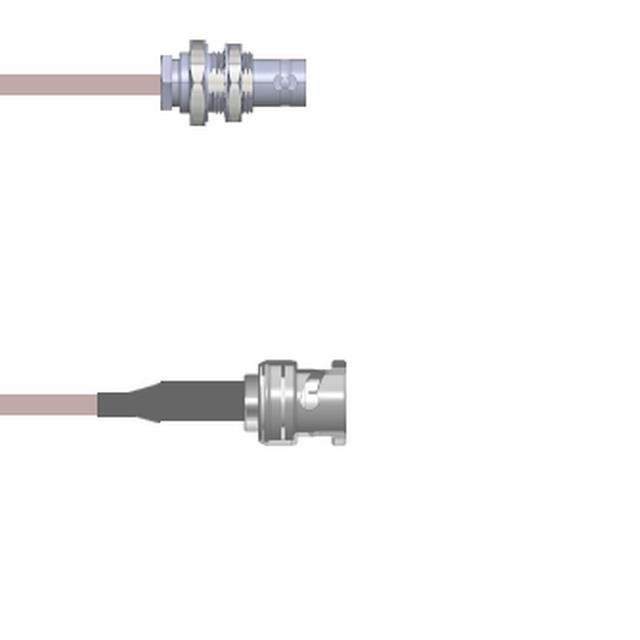

CBL ASSY BNC JACK TO PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0700K000R108i

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0700K000R108i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to BNC

Q-0700K0 Series

Part	Overall Impedance	Cable Type	2nd Contact Gender	Color	Style	1st Connector	2nd Connector	1st Contact Gender	1st Connector Mounting Feature	Length	Length	Length	Features	2nd Connector Mounting Type	1st Connector Mounting Type	Frequency - Max [Max]
Amphenol Custom Cable Q-0700K000R2.5M	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut	8.2 '	98.4 in	2.5 m	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz
Amphenol Custom Cable Q-0700K000R108i	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut	9 ft	108 in	2.7 m	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz
Amphenol Custom Cable Q-0700K000R.75M	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut		29.53 "	750 mm	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz
Amphenol Custom Cable Q-0700K000R009i	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut		9 "	228.6 mm	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz
Amphenol Custom Cable Q-0700K000R060i	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut	5 ft	5 '	1.5 m	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz
Amphenol Custom Cable Q-0700K000R084i	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut	7 ft	84 in	2.1 m	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz
Amphenol Custom Cable Q-0700K000R003i	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut		3 in	76.2 mm	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz
Amphenol Custom Cable Q-0700K000R006i	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut		6 in	152.4 mm	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz
Amphenol Custom Cable Q-0700K000R0.5M	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut		19.69 "	50 cm	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz
Amphenol Custom Cable Q-0700K000R001M	50 Ohms	RG-316 DB	Male	Copper	BNC to BNC	BNC Jack	BNC Plug	Female	Bulkhead - Front Side Nut	3.3 ft	39.4 in	1 m	Shielded	Free Hanging (In-Line)	Panel Mount	2 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 378.30
		25	$ 370.84
		50	$ 363.37
		100	$ 355.91
		250	$ 348.44

Description

General part information

Q-0700K0 Series

Cable Assembly Coaxial BNC to BNC RG-316 DB 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
