56100C

Active

Murata Power Solutions Inc.

CURRENT SENSING TRANSFORMER, 1:100, 30 MH, 10 A, 20KHZ TO 200KHZ, 1.4 OHM

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

CURRENT SENSING TRANSFORMER, 1:100, 30 MH, 10 A, 20KHZ TO 200KHZ, 1.4 OHM

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Weight	Weight	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Termination Style	DC Resistance (DCR) [custom]	DC Resistance (DCR) [custom]	Frequency Range [Max]	Frequency Range [Min]	Type	Current Ratio	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. 56300C	10 A	0.013 lb	5.7 g	20.19 mm	0.795 "	Through Hole	PC Pin	5.73 mOhm	8.59 mOhm	200 kHz	20 kHz	Non-Invasive (Solid Core)	300:1	0.35 "	16.79 mm	0.661 "	8.89 mm
Murata Power Solutions Inc. 56200C	10 A	0.013 lb	5.7 g	20.19 mm	0.795 "	Through Hole	PC Pin	1.87 mOhm	2.81 mOhm	200 kHz	20 kHz	Non-Invasive (Solid Core)	200:1	0.35 "	16.79 mm	0.661 "	8.89 mm	72 mH
Murata Power Solutions Inc. 56100C	10 A	0.013 lb	5.9 g			Through Hole	PC Pin			200 kHz	20 kHz	Non-Invasive (Solid Core)	100:1	0.35 "	16.79 mm	0.661 "	8.89 mm		0.795 "	20.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

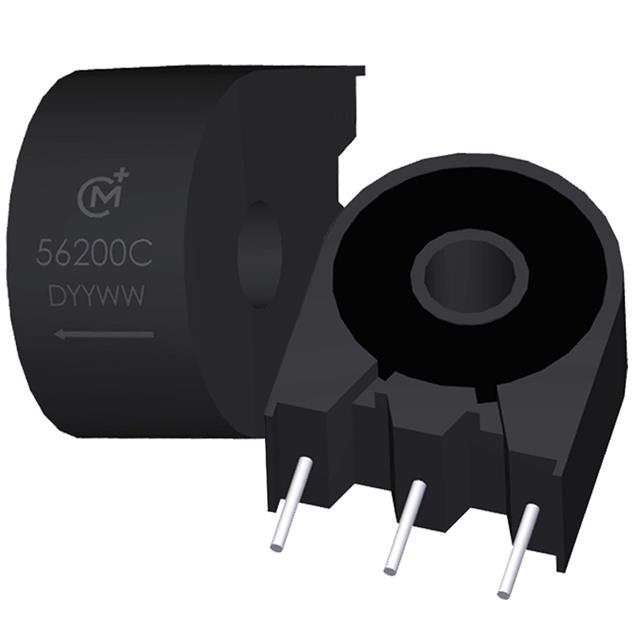

10 A Current Sense Transformer 20kHz ~ 200kHz Through Hole
