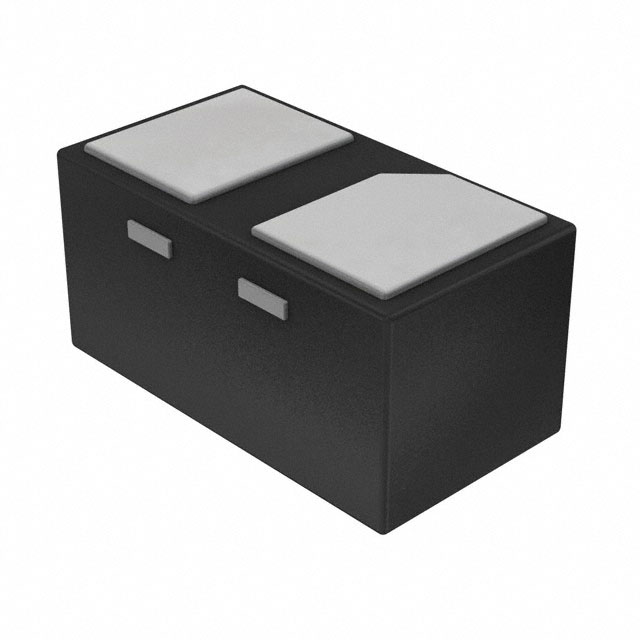

CTLTVS12 TR PBFREE

Obsolete

Central Semiconductor Corp

TVS DIODE 9VWM 18VC TLM2D3D6

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

TVS DIODE 9VWM 18VC TLM2D3D6

Technical Specifications

Parameters and characteristics for this part

Specification	CTLTVS12 TR PBFREE

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	1.8 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 Metric
Package / Case	0201
Power - Peak Pulse	35 W
Power Line Protection	False
Supplier Device Package	TLM2D3D6
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	10 V
Voltage - Clamping (Max) @ Ipp [Max]	18 V
Voltage - Reverse Standoff (Typ)	9 V

Part	Current - Peak Pulse (10/1000µs)	Package / Case	Package / Case	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Unidirectional Channels [custom]	Supplier Device Package	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Applications	Power Line Protection	Voltage - Reverse Standoff (Typ)
Central Semiconductor Corp CTLTVS12 TR PBFREE	1.8 A	0603 Metric	0201	10 V	-55 °C	150 °C	Zener	Surface Mount	1	TLM2D3D6	35 W	18 V	General Purpose		9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

18V Clamp 1.8A (8/20µs) Ipp Tvs Diode Surface Mount TLM2D3D6
