66156-505
ActiveLaird Thermal Systems, Inc.

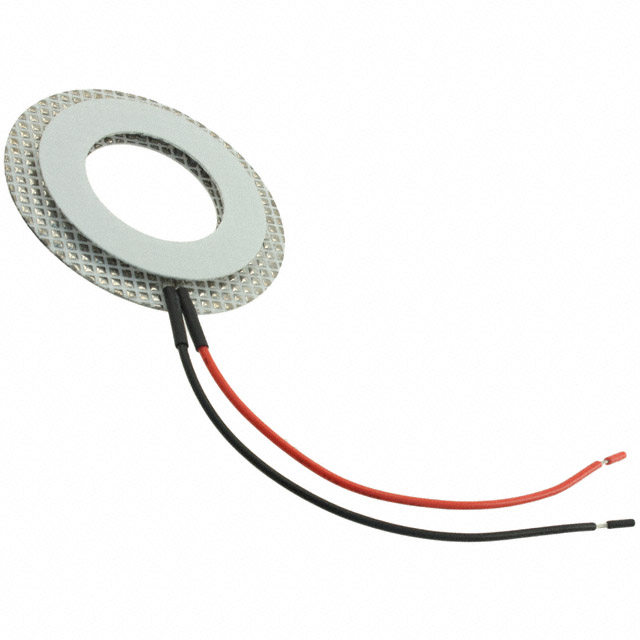

PELTIER RH14,32,06,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
66156-505
ActiveLaird Thermal Systems, Inc.
PELTIER RH14,32,06,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 66156-505 |
|---|---|
| Current - Max [Max] | 6 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.81 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 12.9 W |
| Resistance | 570 mOhms |
| Size / Dimension [diameter] | 55.12 mm, 26.92 mm |
| Voltage - Max [Max] | 3.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 76.08 | |
| 5 | $ 71.63 | |||
| 20 | $ 69.41 | |||
| 40 | $ 67.18 | |||
| 60 | $ 65.40 | |||
| 100 | $ 63.62 | |||
Description
General part information
66156 Series
Peltier Module 12.9W @ 25°C 6 A 80°C
Documents
Technical documentation and resources
