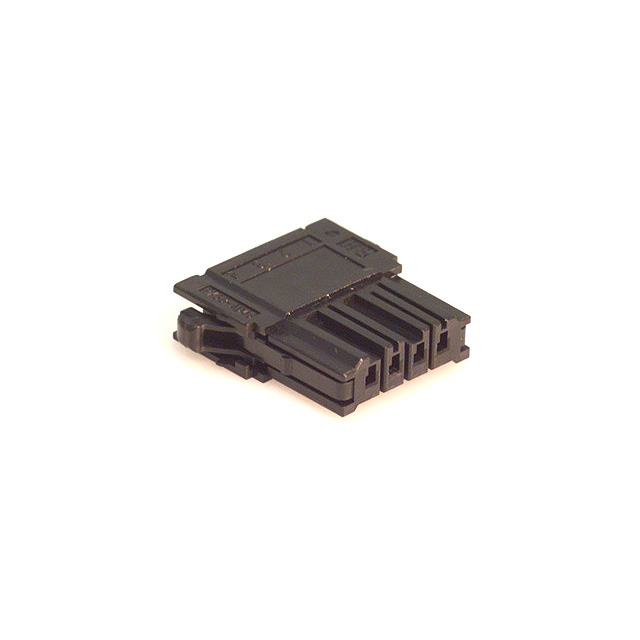

PX50-AD4S

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG 4POS 3.40MM

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG 4POS 3.40MM

Technical Specifications

Parameters and characteristics for this part

Specification	PX50-AD4S

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	3.4 mm
Pitch [x]	0.134 in

Part	Note	Connector Type	Contact Termination	Insulation Material	Number of Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch [x]	Pitch [x]	Color	Contact Type	Contact Finish	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]
Hirose Electric USA, Inc. PX50-AD4S	Contacts Not Included	Plug	Crimp	Polybutylene Terephthalate (PBT)	1	Free Hanging (In-Line)	105 ░C	-55 °C	4	3.4 mm	0.134 in	Black	Female Socket
Hirose Electric USA, Inc. PX50-SC-231(30)
Hirose Electric USA, Inc. PX50-SC-131(30)			Crimp											Gold	Socket	16 AWG	18 AWG
Hirose Electric USA, Inc. PX50-SC-131(50)			Crimp											Gold	Socket	16 AWG	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Rectangular Connectors - Housings Plug Black 0.134" (3.40mm)
