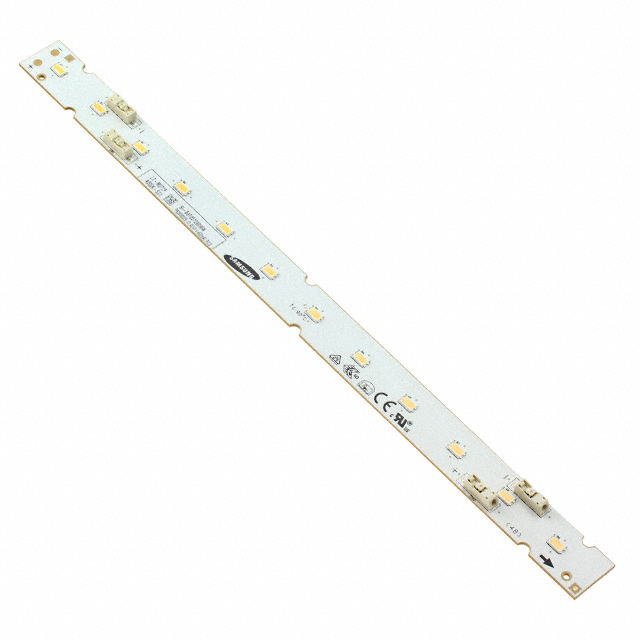

SI-B9T051280WW

Obsolete

Samsung Semiconductor, Inc.

LED MOD LT-M272F LNR STRP 4000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI-B9T051280WW

Obsolete

Samsung Semiconductor, Inc.

LED MOD LT-M272F LNR STRP 4000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI-B9T051280WW

CCT (K)	4000 K
Color	Neutral, White
Configuration	Linear Light Strip
CRI (Color Rendering Index)	90
Current - Test	450 mA
Height [z]	5.8 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	108 lm/W
Luminous Flux @ Current/Temperature	585 lm
Size / Dimension [x]	275 mm
Size / Dimension [y]	18 mm
Temperature - Test	55 °C
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	12 V

SI-B9 Series

Part	Current - Test	Height [z]	Type	CRI (Color Rendering Index)	Color	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Lumens/Watt @ Current - Test	Viewing Angle	Lens Type	Configuration	Current - Max [Max]	CCT (K)
Samsung Semiconductor, Inc. SI-B9V041500WW	110 mA	7 mm	LED Module	90	Warm White	650 lm	500 mm	13 mm	40.8 V	40 °C	145 lm/W	160 °	Flat	Linear Light Strip	300 mA
Samsung Semiconductor, Inc. SI-B9V081B00WW	220 mA	7 mm	LED Module	90	Warm White	1300 lm	1100 mm	13 mm	40.8 V	40 °C	145 lm/W	160 °	Flat	Linear Light Strip	600 mA
Samsung Semiconductor, Inc. SI-B9W111560WW	450 mA	5.8 mm	LED Module	90	Warm White	1020 lm	560 mm	18 mm	24.7 V	50 °C	92 lm/W	115 °	Flat	Linear Light Strip		2700 K
Samsung Semiconductor, Inc. SI-B9R081B00WW	220 mA	7 mm	LED Module	90	Cool White	1400 lm	1100 mm	13 mm	40.8 V	40 °C	156 lm/W	160 °	Flat	Linear Light Strip	600 mA	5000 K
Samsung Semiconductor, Inc. SI-B9U081B00WW	220 mA	7 mm	LED Module	90	Warm White	1340 lm	1100 mm	13 mm	40.8 V	40 °C	149 lm/W	160 °	Flat	Linear Light Strip	600 mA	3500 K
Samsung Semiconductor, Inc. SI-B9T051280WW	450 mA	5.8 mm	LED Module	90	Neutral White	585 lm	275 mm	18 mm	12 V	55 °C	108 lm/W	115 °	Flat	Linear Light Strip		4000 K
Samsung Semiconductor, Inc. SI-B9U041500WW	110 mA	7 mm	LED Module	90	Warm White	670 lm	500 mm	13 mm	40.8 V	40 °C	149 lm/W	160 °	Flat	Linear Light Strip	300 mA	3500 K
Samsung Semiconductor, Inc. SI-B9T041500WW	110 mA	7 mm	LED Module	90	Neutral White	700 lm	500 mm	13 mm	40.8 V	40 °C	156 lm/W	160 °	Flat	Linear Light Strip	300 mA	4000 K
Samsung Semiconductor, Inc. SI-B9T171550WW		5.8 mm	LED Module	90	Neutral White	1900 lm	560 mm	18 mm	24 V		113 lm/W	115 °	Flat	Linear Light Strip	900 mA	4000 K
Samsung Semiconductor, Inc. SI-B9U222B2HUS	960 mA	3.7 mm	LED Module	90	Warm White	3350 lm	1120 mm	18 mm		40 °C	159 lm/W		Flat	Linear Light Strip	3.7 A	3500 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SI-B9 Series

LED Lighting COBs Engines Modules LED Module LT-M272F White, Neutral Linear Light Strip
