M1CXK-2436J

Active

3M (TC)

IDC CABLE - MKC24K/MC24G/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

M1CXK-2436J

Active

3M (TC)

IDC CABLE - MKC24K/MC24G/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1CXK-2436J

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	24
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1CXK Series

Part	Contact Finish	Number of Rows	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Features	Cable Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Length [x]	Length [x]	Shielding	Color	Number of Positions
3M (TC) M1CXK-1436J	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	14	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded
3M (TC) M1CXK-2436R	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	24	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded	Multiple Ribbon
3M (TC) M1CXK-1440K	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	14	0.76 Ám	30 Áin	Socket to Cable	3.34 ft	1.02 m	Unshielded	Multiple Twisted Pair (Flat)
3M (TC) M1CXK-2436J	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	24	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded
3M (TC) M1CXK-1640K	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC		0.76 Ám	30 Áin	Socket to Cable	3.34 ft	1.02 m	Unshielded	Multiple Twisted Pair (Flat)	16
3M (TC) M1CXK-5036J	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	50	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded
3M (TC) M1CXK-5040K	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	50	0.76 Ám	30 Áin	Socket to Cable	3.34 ft	1.02 m	Unshielded	Multiple Twisted Pair (Flat)
3M (TC) M1CXK-2040K	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	20	0.76 Ám	30 Áin	Socket to Cable	3.34 ft	1.02 m	Unshielded	Multiple Twisted Pair (Flat)
3M (TC) M1CXK-2636J	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	26	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded
3M (TC) M1CXK-5036R	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	50	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded	Multiple Ribbon

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.54
		10	$ 9.63
		25	$ 8.70
		50	$ 8.08
		100	$ 7.51
		250	$ 6.84
		500	$ 6.38
		1000	$ 5.97

Description

General part information

M1CXK Series

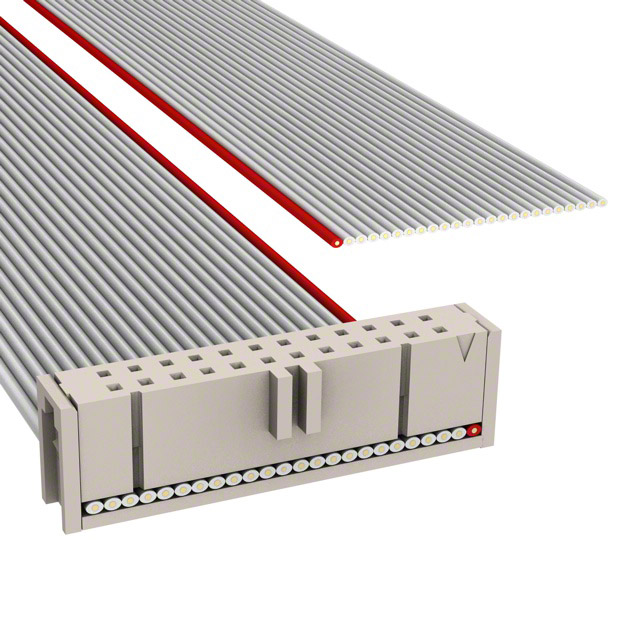

24 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

3365 Series Datasheet

Datasheet
