EVB_RT6200GE

Active

Richtek USA Inc.

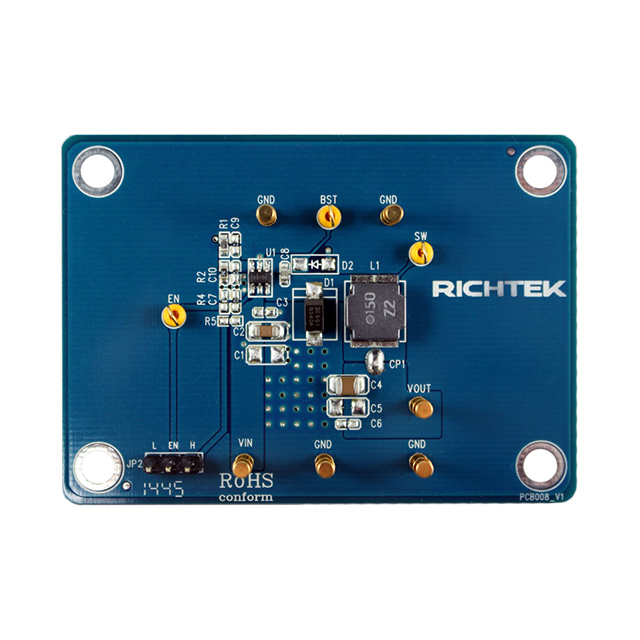

EVAL MODULE FOR RT6200GE

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT6200GE

Technical Specifications

Parameters and characteristics for this part

Part	Board Type	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Current - Output	Frequency - Switching	Outputs and Type	Outputs and Type	Regulator Topology	Voltage - Output	Utilized IC / Part	Topology	Output Configuration	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Package / Case	Voltage - Output (Min/Fixed)	Supplier Device Package	Synchronous Rectifier	Function	Voltage - Input (Max) [Max]	Output Type	Mounting Type
Richtek USA Inc. EVB_RT6200GE	Fully Populated	DC/DC Step Down	4.5 V	36 V	Board(s)	600 mA	1.2 MHz	Non-Isolated	1	Buck	5 V	RT6200
Richtek USA Inc. RT6200GE						600 mA	1.2 MHz						Buck	Positive	4.5 V	85 °C	-40 °C	1	SOT-23-6	0.8 V	SOT-23-6		Step-Down	36 V	Adjustable	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.90

General part information

RT6200 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
