011024WF075

Active

Essentra Access Solutions

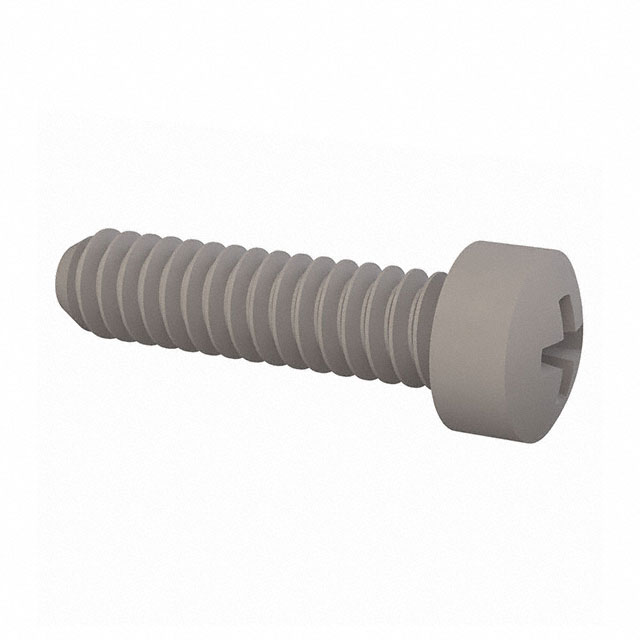

FILLISTER PHILLIPS SCREW 10-24

Search across all available documentation for this part.

Active

Essentra Access Solutions

FILLISTER PHILLIPS SCREW 10-24

Technical Specifications

Parameters and characteristics for this part

Part	Drive Type	Head Diameter [diameter]	Head Diameter [diameter]	Type	Material	Length - Overall [x]	Length - Overall	Length - Below Head	Length - Below Head	Length - Below Head	Head Height	Head Height	Screw Head Type	Thread Size	Length - Below Head [custom]	Length - Below Head [custom]	Length - Overall [x]	Length - Below Head [x]	Length - Below Head [x]
Essentra Access Solutions 011024WF037	Phillips	7.68 mm	0.303 in	Machine Screw	Nylon	0.711 in	18.06 mm	0.375 "	9.53 mm	0.375 "	8.53 mm	0.336 in	Pan Head	#10-24
Essentra Access Solutions 011024WF031	Phillips	7.68 mm	0.303 in	Machine Screw	Nylon						8.53 mm	0.336 in	Pan Head	#10-24	7.94 mm	0.313 in
Essentra Access Solutions 011024WF075	Phillips	7.68 mm	0.303 in	Machine Screw	Nylon	1.086 in		0.75 "	0.75 "	19.05 mm	8.53 mm	0.336 in	Pan Head	#10-24			27.58 mm
Essentra Access Solutions 011024WF125	Phillips	7.68 mm	0.303 in	Machine Screw	Nylon						8.53 mm	0.336 in	Pan Head	#10-24				28.58 mm	1.125 in
Essentra Access Solutions 011024WF012	Phillips	7.68 mm	0.303 in	Machine Screw	Nylon	0.461 in		0.125 in	0.125 in	3.18 mm	8.53 mm	0.336 in	Pan Head	#10-24			11.71 mm
Essentra Access Solutions 011024WF150	Phillips	7.68 mm	0.303 in	Machine Screw	Nylon	1.836 in				38.1 mm	8.53 mm	0.336 in	Pan Head	#10-24			46.63 mm		1.5 in
Essentra Access Solutions 011024WF018	Phillips	7.68 mm	0.303 in	Machine Screw	Nylon	0.524 in	13.3 mm				8.53 mm	0.336 in	Pan Head	#10-24				4.76 mm	0.188 in
Essentra Access Solutions 011024WF100	Phillips	7.68 mm	0.303 in	Machine Screw	Nylon	1.336 in		1 in		25.4 mm	8.53 mm	0.336 in	Pan Head	#10-24			33.93 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.06

General part information

#10-24 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available
