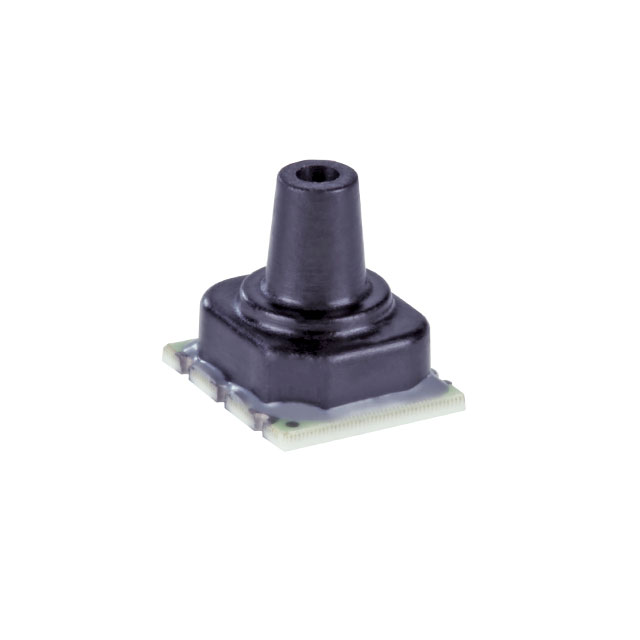

ABPLLND060MGAA3

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.87PSIG 0.11" 2.97V MOD

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.87PSIG 0.11" 2.97V MOD

Technical Specifications

Parameters and characteristics for this part

Specification	ABPLLND060MGAA3

Accuracy	0.25 %
Applications	Medical Ventilation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	12.33 PSI
Maximum Pressure [Max]	85 kPa
Mounting Type	Surface Mount
Operating Pressure	6 kPa
Operating Pressure	0.87 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	2.97 V
Output [Min]	0.33 V
Output Type	Analog Voltage
Port Size	0.11 ", 2.67 mm
Port Style	Barbless
Pressure Type	Vented Gauge
Supplier Device Package	Module
Termination Style	SMD (SMT) Tab
Voltage - Supply	3.3 V

Part	Applications	Operating Pressure	Operating Pressure	Voltage - Supply	Supplier Device Package	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Features	Pressure Type	Mounting Type	Output Type	Output [Min]	Output [Max]	Termination Style	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]
Honeywell Sensing and Productivity Solutions ABPLLND060MGAA3	Medical Ventilation	6 kPa	0.87 PSI	3.3 V	Module	0.11 " 2.67 mm	85 °C	-40 °C	0.25 %	Amplified Output Temperature Compensated	Vented Gauge	Surface Mount	Analog Voltage	0.33 V	2.97 V	SMD (SMT) Tab	Barbless	12.33 PSI	85 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 20.06

General part information

Pressure Sensor 0.87PSI (6kPa) Vented Gauge Male - 0.11" (2.67mm) Tube 0.33 V ~ 2.97 V 6-SMD Module, No Lead
