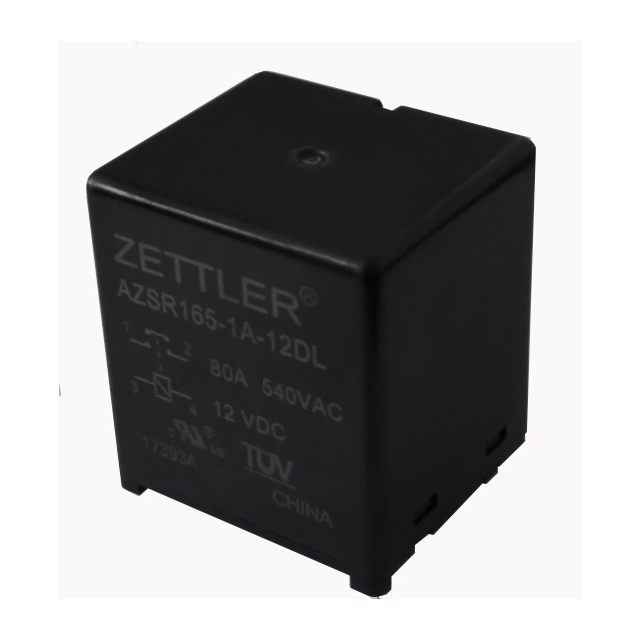

AZSR165-1AE-24DL

Active

American Zettler

RELAY EV CHG SOLAR SPST 80A 24V

Search across all available documentation for this part.

Active

American Zettler

RELAY EV CHG SOLAR SPST 80A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Must Release Voltage	Coil Insulation	Coil Voltage	Contact Material	Operate Time	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Mounting Type	Load - Max Switching [Max]	Termination Style	Release Time	Relay Type	Approval Agency	Contact Rating (Current)	Coil Resistance	Coil Current	Must Operate Voltage	Coil Type
American Zettler AZSR165-1A-24DL	1.2 VDC	Class F	24 VDC	Silver Nickel (AgNi)	40 ms	690 VAC	85 °C	-40 °C	SPST-NO (1 Form A)	Through Hole	55200 VA	PC Pin	20 ms	EV Charging Solar	TUV UL	80 A	260 Ohms	92.3 mA	18 VDC	Non Latching
American Zettler AZSR165-1AE-24DL	1.2 VDC	Class F	24 VDC	Silver Tin Oxide (AgSnO)	40 ms	690 VAC	85 °C	-40 °C	SPST-NO (1 Form A)	Through Hole	55200 VA	PC Pin	20 ms	EV Charging Solar	TUV UL	80 A	260 Ohms	92.3 mA	18 VDC	Non Latching
American Zettler AZSR165-1A-12DL	0.6 VDC	Class F	12 VDC	Silver Nickel (AgNi)	40 ms	690 VAC	85 °C	-40 °C	SPST-NO (1 Form A)	Through Hole	55200 VA	PC Pin	20 ms	EV Charging Solar	TUV UL	80 A	65 Ohms	184.6 mA	9 VDC	Non Latching
American Zettler AZSR165-1AE-12DL	0.6 VDC	Class F	12 VDC	Silver Tin Oxide (AgSnO)	40 ms	690 VAC	85 °C	-40 °C	SPST-NO (1 Form A)	Through Hole	55200 VA	PC Pin	20 ms	EV Charging Solar	TUV UL	80 A	65 Ohms	184.6 mA	9 VDC	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EV Charging, Solar Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
