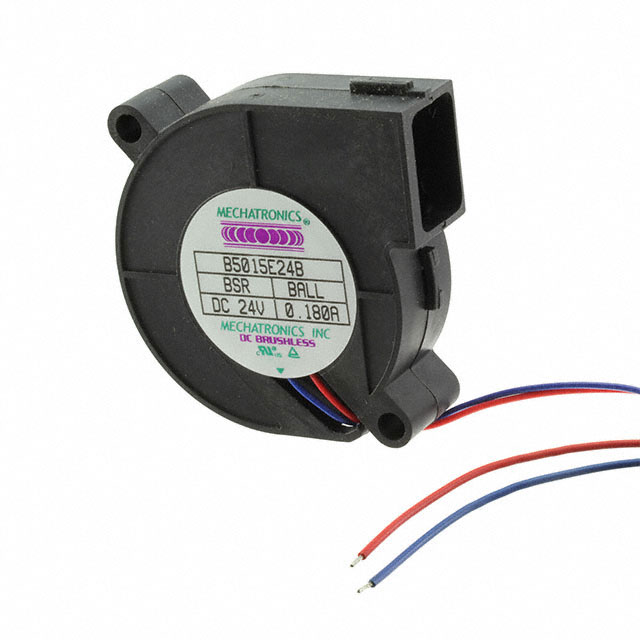

B5015E24B-BSR

Active

Mechatronics Bearing Group

FAN BLOWER 51X15.7MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

B5015E24B-BSR

Active

Mechatronics Bearing Group

FAN BLOWER 51X15.7MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B5015E24B-BSR

Air Flow	5 CFM
Air Flow	0.14 mł/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Blower
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	45 dB(A)
RPM	6500 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	51 mm
Size / Dimension [z]	51 mm
Static Pressure	0.88 in H2O
Static Pressure	219.2 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	28.12 g
Weight	0.062 lb
Width [y]	15.7 mm

B5015 Series

Part	Fan Type	Approval Agency	Material - Blade	Width [y]	RPM	Noise	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Features	Termination	Bearing Type	Air Flow	Air Flow	Voltage - Rated	Weight	Weight	Current Rating (Amps)
Mechatronics Bearing Group B5015M12B-BSR	Blower	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	15.7 mm	4500 RPM	35 dB	87.2 Pa	0.35 in H2O	Square/Rounded	51 mm	51 mm	Thermal Overload Protector (TOP)	2 Wire Leads	Ball	0.084 m³/min	3 CFM	12 VDC	28.12 g	0.062 lb
Mechatronics Bearing Group B5015E24B-BSR	Blower	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	15.7 mm	6500 RPM	45 dB(A)	219.2 Pa	0.88 in H2O	Square/Rounded	51 mm	51 mm	Thermal Overload Protector (TOP)	2 Wire Leads	Ball	0.14 mł/min	5 CFM	24 VDC	28.12 g	0.062 lb	0.18 A
Mechatronics Bearing Group B5015E12B1-BSR	Blower	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	15.7 mm	6500 RPM	45 dB(A)	219.2 Pa	0.88 in H2O	Square/Rounded	51 mm	51 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	3 Wire Leads	Ball	0.14 mł/min	5 CFM	12 VDC	28.12 g	0.062 lb
Mechatronics Bearing Group B5015H12B2-BSR	Blower	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	15.7 mm	5500 RPM	40 dB(A)	139.5 Pa	0.56 in H2O	Square/Rounded	51 mm	51 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)	3 Wire Leads	Ball	0.112 m³/min	4 CFM	12 VDC	28.12 g	0.062 lb	0.2 A
Mechatronics Bearing Group B5015M12B2-BSR	Blower	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	15.7 mm	4500 RPM	35 dB	87.2 Pa	0.35 in H2O	Square/Rounded	51 mm	51 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)	3 Wire Leads	Ball	0.084 m³/min	3 CFM	12 VDC	28.12 g	0.062 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.72
		10	$ 9.55
		25	$ 9.13
		50	$ 8.82
		100	$ 8.52
		300	$ 8.06
		500	$ 7.86

Description

General part information

B5015 Series

Fan Blower 24VDC Square/Rounded - 51mm L x 51mm H Ball 5.0 CFM (0.140m³/min) 2 Wire Leads
