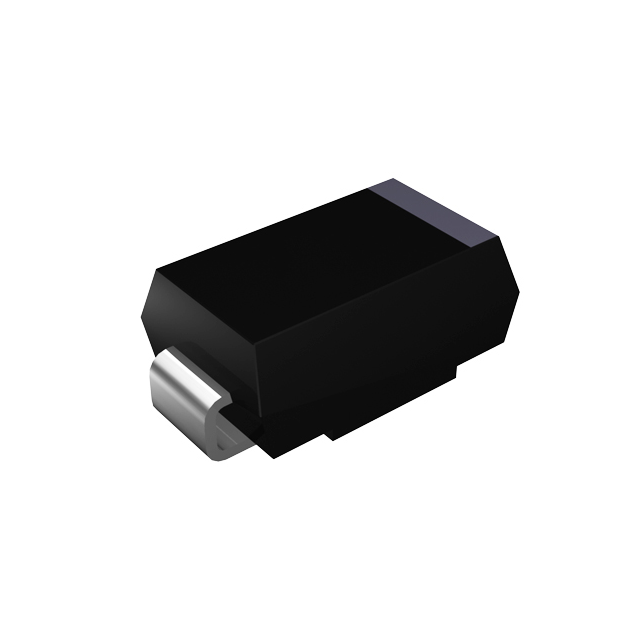

SK36A

Active

Surge

DIODE SCHOTTKY 60V 3A DO214AC

Search across all available documentation for this part.

Active

Surge

DIODE SCHOTTKY 60V 3A DO214AC

Technical Specifications

Parameters and characteristics for this part

Specification	SK36A

Capacitance @ Vr, F	250 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	150 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-214AC, SMA
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AC (SMA)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	700 mV

Part	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Supplier Device Package
Surge SK36	DO-214AB SMC	DO-214AB (SMC)	700 mV	Schottky	3 A	150 µA	60 V	200 mA 500 ns	Surface Mount	150 °C	-55 °C	250 pF
Surge SK36A	DO-214AC SMA	DO-214AC (SMA)	700 mV	Schottky	3 A	150 µA	60 V	200 mA 500 ns	Surface Mount	150 °C	-55 °C	250 pF
Surge SK36B	DO-214AA SMB	DO-214AA	700 mV	Schottky	3 A	200 µA	60 V	200 mA 500 ns	Surface Mount	150 °C	-55 °C	250 pF	SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 60 V 3A Surface Mount DO-214AC (SMA)
