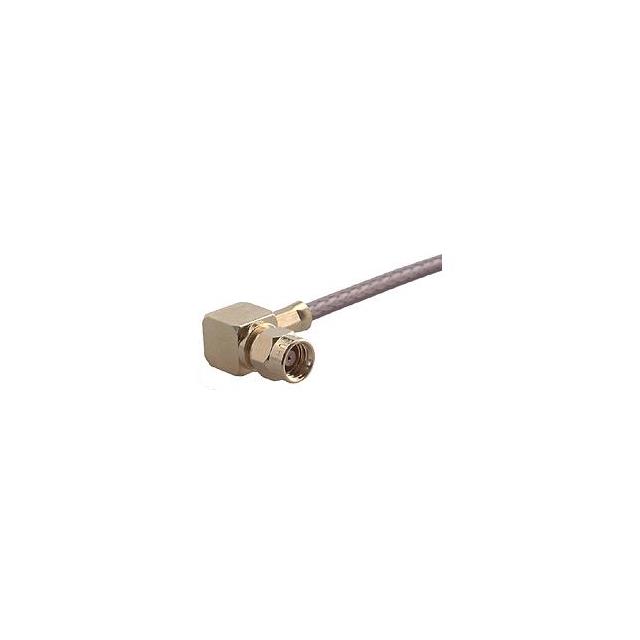

16_SMC-50-2-11/111_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

16_SMC-50-2-11/111_NE

Technical Specifications

Parameters and characteristics for this part

Specification	16_SMC-50-2-11/111_NE

Body Finish	Gold
Body Material	Brass
Cable Group	RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Impedance	Center Contact Plating	Contact Termination	Mounting Type	Dielectric Material	Connector Style	Body Finish	Center Contact Material	Housing Color	Mating Cycles	Connector Type	Cable Group	Cable Group	Body Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Shield Termination
Huber+Suhner, Inc. 16_SMC-50-1-10/111_NH	50 Ohms	Gold	Crimp	Free Hanging (In-Line) Right Angle	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	SMC	Gold	Beryllium Copper	Gold	500	Male Pin Plug	196	RG-178	Brass	1	-65 ░C	165 °C	10 GHz	Crimp
Huber+Suhner, Inc. 16_SMC-50-1-10/111_NE	50 Ohms	Gold	Crimp	Free Hanging (In-Line) Right Angle	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	SMC	Gold	Beryllium Copper	Gold	500	Male Pin Plug	196	RG-178	Brass	1	-65 ░C	165 °C	10 GHz	Crimp
Huber+Suhner, Inc. 16_SMC-50-2-10/111_NE	50 Ohms	Gold	Crimp	Free Hanging (In-Line) Right Angle	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	SMC	Gold	Beryllium Copper	Gold	500	Male Pin Plug		188 316 RG-174	Brass	1	-65 ░C	165 °C	10 GHz	Crimp
Huber+Suhner, Inc. 16_SMC-50-2-11/111_NE	50 Ohms	Gold	Crimp	Free Hanging (In-Line) Right Angle	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	SMC	Gold	Beryllium Copper	Gold	500	Male Pin Plug		RD-316	Brass	1	-65 ░C	165 °C	10 GHz	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 22.27

General part information

SMC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
