1-1414168-0
ActiveTE Connectivity Potter & Brumfield Relays

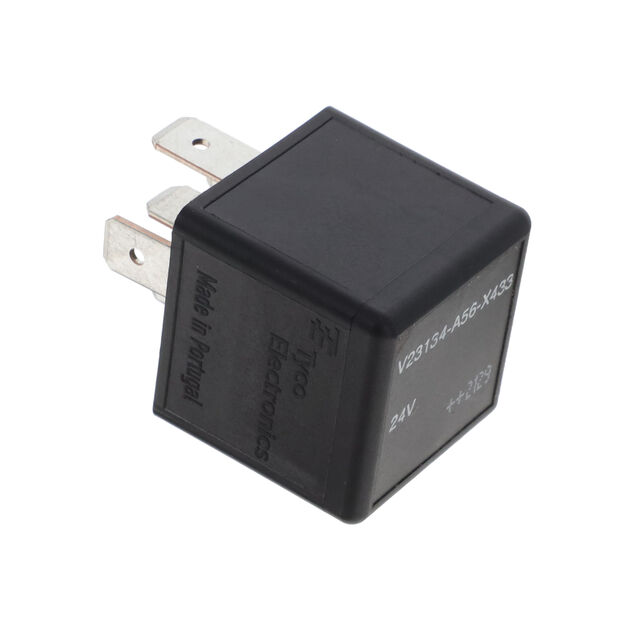

RELAY AUTO SPDT 45A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1414168-0
ActiveTE Connectivity Potter & Brumfield Relays
RELAY AUTO SPDT 45A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1414168-0 |
|---|---|
| Coil Power | 2.1 W |
| Coil Resistance | 268 Ohms |
| Coil Type | Latching, Single Coil |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag) |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 4 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.00 | |
| 10 | $ 13.33 | |||
| 25 | $ 12.66 | |||
| 50 | $ 12.00 | |||
| 100 | $ 11.33 | |||
| 315 | $ 10.33 | |||
| 630 | $ 9.66 | |||
Description
General part information
1414168 Series
RELAY AUTO SPDT 45A 24V
Documents
Technical documentation and resources
