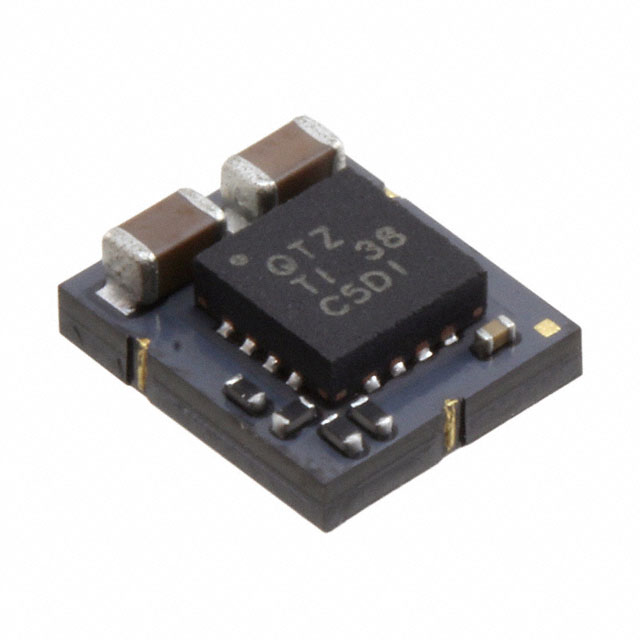

LXDC55FAAA-203
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 0.8-5.3V
Deep-Dive with AI
Search across all available documentation for this part.
LXDC55FAAA-203
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 0.8-5.3V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LXDC55FAAA-203 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 1.5 A |
| Efficiency | 87 % |
| Features | OTP, UVLO, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-SMD Module |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [x] | 0.2 in |
| Size / Dimension [y] | 5.7 mm |
| Size / Dimension [y] | 0.22 " |
| Size / Dimension [z] | 0.08 in |
| Size / Dimension [z] | 2.1 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output 1 [Max] | 5.3 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LXDC55F Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.3V 1.5A 4V - 14V Input
Documents
Technical documentation and resources
No documents available
