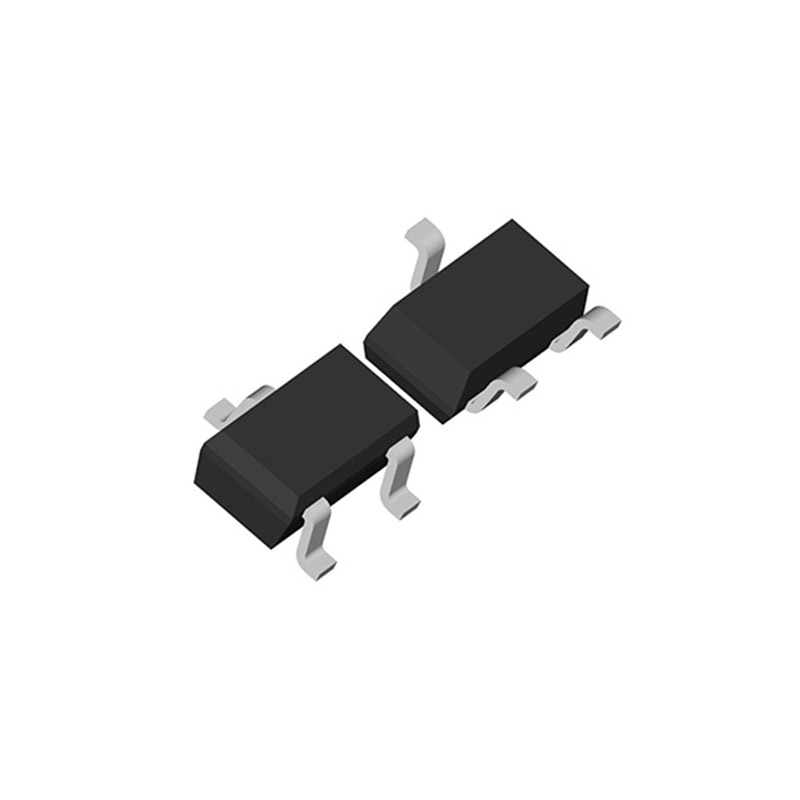

AM2340NE
ActiveAnalog Power Inc.
MOSFET N-CH 40V 5A SOT-23
Deep-Dive with AI
Search across all available documentation for this part.
AM2340NE
ActiveAnalog Power Inc.
MOSFET N-CH 40V 5A SOT-23
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AM2340NE |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 5.2 A |
| Drain to Source Voltage (Vdss) | 40 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 4 nC |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power Dissipation (Max) | 1.3 W |
| Supplier Device Package | SOT-23 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AM2340NE
N-Channel 40 V 5.2A (Ta) 1.3W (Ta) Surface Mount SOT-23
Documents
Technical documentation and resources
No documents available
