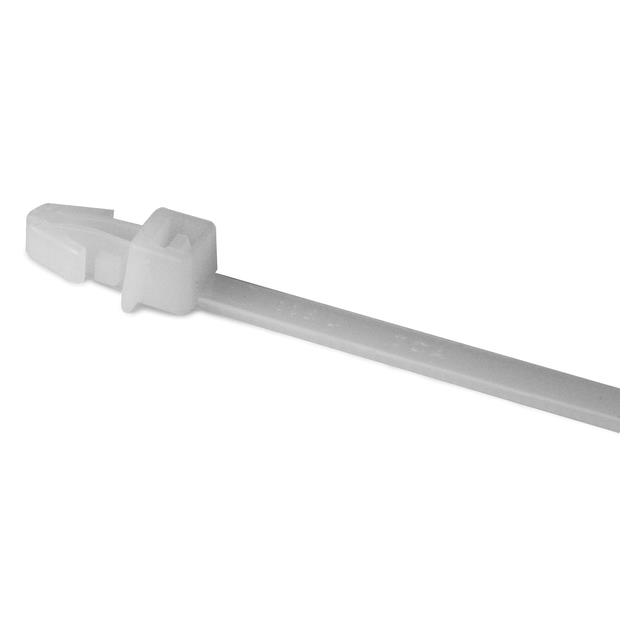

T50RSF9M4 - T50RSF9C2

T50RSF9M4

Active
HELLERMANNTYTON

1-PC CABLE TIE/ARROWHEAD MOUNT, 8.3"L, 50LB, 0.04" 0.14" PANEL THICKNESS, PA66, NATURAL, 1000/PKG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & SecuringDatasheet
T50RSF9M4 - T50RSF9C2

T50RSF9M4

Active
HELLERMANNTYTON

1-PC CABLE TIE/ARROWHEAD MOUNT, 8.3"L, 50LB, 0.04" 0.14" PANEL THICKNESS, PA66, NATURAL, 1000/PKG

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & SecuringDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationT50RSF9M4
Bundle Diameter [diameter]1.73 in
Bundle Diameter [diameter]44 mm
ColorNatural
Length - Actual [x]210 mm
Length - Actual [x]0.689 ft
Length - Actual [x]8.27 in
Length - Approximate8.25 in
MaterialPolyamide (PA66), Nylon 6/6
Mounting TypePush Mount, Arrowhead
Tensile Strength22.68 kg
Tensile Strength50 lbs
Width [x]4.7 mm
Width [x]0.185 in
Wire/Cable Tie TypeStandard, Locking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1000$ 0.22
NewarkPack of 1000 1$ 412.96
10$ 383.47
25$ 369.85
50$ 356.24
100$ 340.35

Description

General part information

T50RSF Series

Standard, Locking Natural 1.73" (44.00mm) 0.185" (4.70mm) 50 lbs (22.68 kg)
