F6025M12B-RHR

Active

Mechatronics Bearing Group

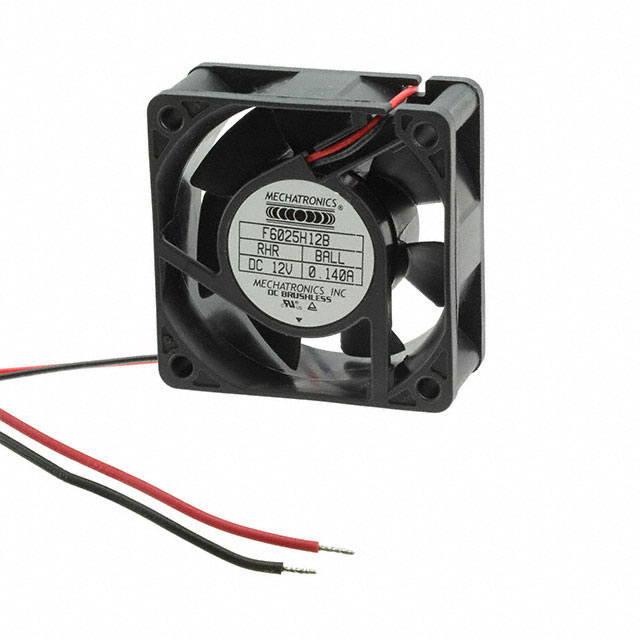

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

F6025M12B-RHR

Active

Mechatronics Bearing Group

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	F6025M12B-RHR

Air Flow	17 CFM
Air Flow	0.476 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.095 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	28 dB
RPM	3600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	49.8 Pa
Static Pressure	0.2 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	63.05 g
Weight	0.139 lb
Width [y]	25 mm

F6025 Series

Part	Width [y]	Size / Dimension [x]	Size / Dimension [y]	Noise	Material - Blade	Approval Agency	Termination	Weight	Weight	Air Flow	Air Flow	Current Rating (Amps)	Static Pressure	Static Pressure	Features	Bearing Type	RPM	Voltage - Rated	Fan Type
Mechatronics Bearing Group F6025X24B2-RHR-TTL	25 mm	60 mm	60 mm	42 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	3 Wire Leads	63.05 g	0.139 lb	28 CFM	0.784 m³/min	0.17 A	92.2 Pa	0.37 in H2O	Locked Rotor Sensor Thermal Overload Protector (TOP)	Ball	5800 RPM	24 VDC	Tubeaxial
Mechatronics Bearing Group F6025H12B4-RHR	25 mm	60 mm	60 mm	32 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	2 Wire Leads	63.05 g	0.139 lb	20 CFM	0.56 m³/min	140 mA	64.8 Pa	0.26 in H2O	Thermal Overload Protector (TOP) Thermistor	Ball	4200 RPM	12 VDC	Tubeaxial
Mechatronics Bearing Group F6025H12B2-RSR-CC	25 mm	60 mm	60 mm	31 dB(A)	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	3 Wire Leads	63.05 g	0.139 lb	20 CFM	0.56 m³/min	140 mA			Auto Restart Conformal Coating Locked Rotor Sensor	Ball	3800 RPM	12 VDC	Tubeaxial
Mechatronics Bearing Group F6025E24B2-RSR	25 mm	60 mm	60 mm	36 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	3 Wire Leads	63.05 g	0.139 lb	24 CFM	0.672 mł/min	125 mA	57.3 Pa	0.23 in H2O	Auto Restart Locked Rotor Sensor	Ball	4600 RPM	24 VDC	Tubeaxial
Mechatronics Bearing Group F6025H24B1-RSR	25 mm	60 mm	60 mm	31 dB(A)	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	3 Wire Leads	63.05 g	0.139 lb	20 CFM	0.56 m³/min				Auto Restart Locked Rotor Protection Speed Sensor (Tach)	Ball	3800 RPM	24 VDC	Tubeaxial
Mechatronics Bearing Group F6025H05B2-FSR	25 mm	60 mm	60 mm	31 dB(A)	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	3 Wire Leads	63.05 g	0.139 lb	20 CFM	0.56 m³/min	0.41 A			Auto Restart Locked Rotor Sensor	Ball	3800 RPM	5 V	Tubeaxial
Mechatronics Bearing Group F6025M24B-FHR-CC	25 mm	60 mm	60 mm	28 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	2 Wire Leads	63.05 g	0.139 lb	17 CFM	0.476 m³/min	0.055 A	49.8 Pa	0.2 in H2O	Conformal Coating Thermal Overload Protector (TOP)	Ball	3600 RPM	24 VDC	Tubeaxial
Mechatronics Bearing Group F6025H24B-RSR-L19	25 mm	60 mm	60 mm	32 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	2 Wire Leads	70.76 g	0.156 lb	20 CFM	0.56 m³/min				Thermal Overload Protector (TOP)	Ball	3800 RPM	24 VDC	Tubeaxial
Mechatronics Bearing Group F6025H05B-RHR	25 mm	60 mm	60 mm	32 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	2 Wire Leads	63.05 g	0.139 lb	20 CFM	0.56 m³/min		64.8 Pa	0.26 in H2O	Thermal Overload Protector (TOP)	Ball	4200 RPM	5 V	Tubeaxial
Mechatronics Bearing Group F6025M12B-RHR	25 mm	60 mm	60 mm	28 dB	Polybutylene Terephthalate (PBT)	CE cUL TUV UL	2 Wire Leads	63.05 g	0.139 lb	17 CFM	0.476 m³/min	0.095 A	49.8 Pa	0.2 in H2O	Thermal Overload Protector (TOP)	Ball	3600 RPM	12 VDC	Tubeaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.54

Description

General part information

F6025 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 17.0 CFM (0.476m³/min) 2 Wire Leads
