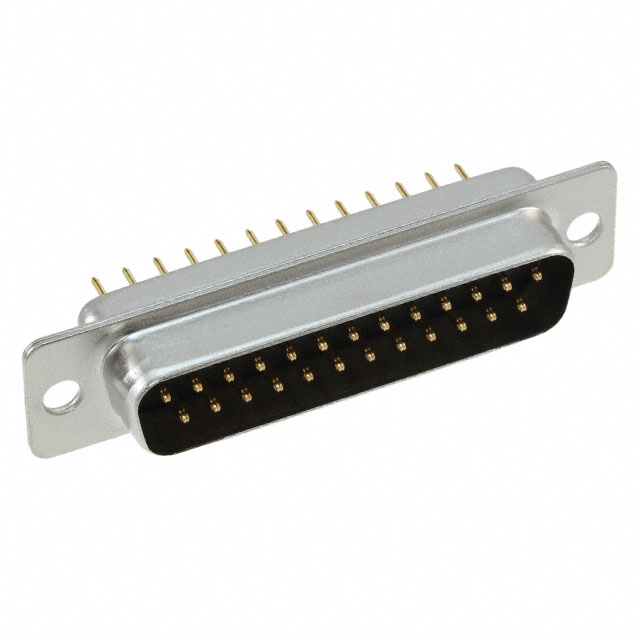

SDBB-25P(55)

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG 25P PNL MNT SLDR

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG 25P PNL MNT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	SDBB-25P(55)

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	350 V

Part	Contact Type	Voltage Rating	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Material Flammability Rating	Color	Termination	Current Rating (Amps)	Number of Rows	Mounting Type	Contact Material	Connector Type	Connector Style	Shell Material, Finish	Flange Feature
Hirose Electric USA, Inc. SDBB-25P(55)	Signal	350 V	Polybutylene Terephthalate (PBT)	8 çin	0.203 çm	B DB	3	Gold	UL94 V-0	Black	Solder	3 A	2	Panel Mount Through Hole	Phosphor Bronze	Male Pins Plug	D-Sub	Nickel Plated Steel	Housing/Shell (Unthreaded)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
