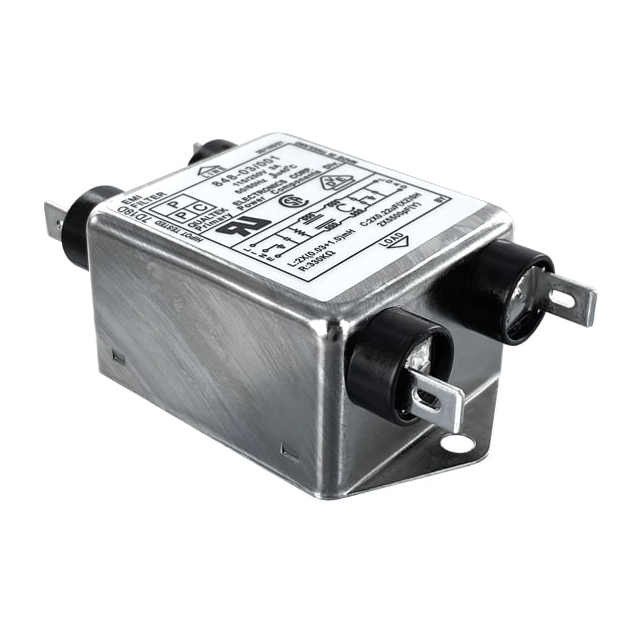

848-03/001
ActiveQualtek
LINE FILTER 115V/250VAC 3A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
848-03/001
ActiveQualtek
LINE FILTER 115V/250VAC 3A CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 848-03/001 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Two Stage |
| Current | 3 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance [custom] | 1 mH |
| Inductance [custom] | 30 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 115 V, 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.78 | |
| 10 | $ 10.42 | |||
| 25 | $ 9.61 | |||
| 40 | $ 9.22 | |||
| 80 | $ 8.73 | |||
Description
General part information
848-03 Series
Single Phase EMC/EMI Line Filter 3 A 115V, 250V 50/60Hz Two Stage Quick Connect
