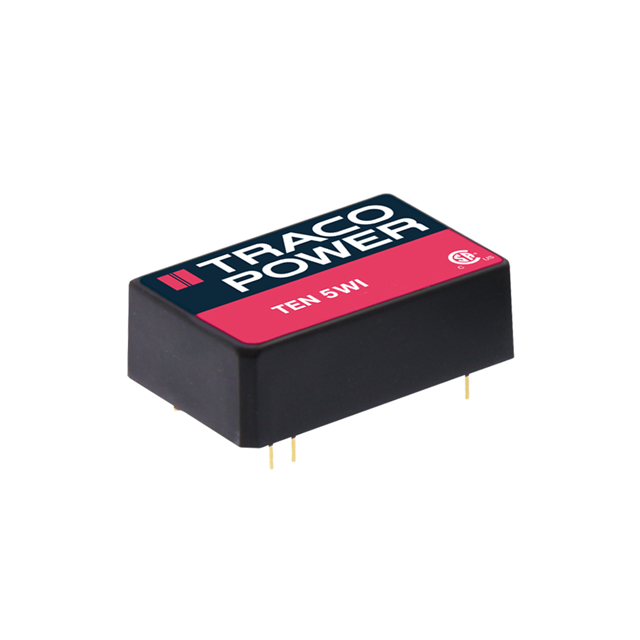

TEN 5-2413WI

Traco Power

DC DC CONVERTER 15V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEN 5-2413WI

Traco Power

DC DC CONVERTER 15V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 5-2413WI

Applications	ITE (Commercial)
Current - Output (Max) [Max]	400 mA
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 7 Leads
Power (Watts)	6 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Supplier Device Package	Module
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

TEN 5 Series

Part	Power (Watts)	Applications	Features	Efficiency	Supplier Device Package	Voltage - Output 1	Package / Case	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Type	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power TEN 5-2410	4 W	ITE (Commercial)	SCP	79 %	Module	3.3 V	24-DIP Module 7 Leads	Through Hole	1.2 A	18 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	1	85 °C	-40 °C	36 V	1.5 kV	Isolated Module
Traco Power TEN 5-2413WI	6 W	ITE (Commercial)	SCP		Module	15 V	24-DIP Module 7 Leads	Through Hole	400 mA	9 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	1	85 °C	-40 °C	36 V	1.5 kV	Isolated Module
Traco Power TEN 5-2410WI	4 W	ITE (Commercial)	SCP	75 %	Module	3.3 V	24-DIP Module 7 Leads	Through Hole	1.2 A	9 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	1	85 °C	-40 °C	36 V	1.5 kV	Isolated Module
Traco Power TEN 5-2412	6 W	ITE (Commercial)	SCP	86 %	Module	12 V	24-DIP Module 7 Leads	Through Hole	500 mA	18 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	1	85 °C	-40 °C	36 V	1.5 kV	Isolated Module
Traco Power TEN 5-2411WI	5 W	ITE (Commercial)	SCP	78 %	Module	5 V	24-DIP Module 7 Leads	Through Hole	1 A	9 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	1	85 °C	-40 °C	36 V	1.5 kV	Isolated Module
Traco Power TEN 5-1223	6 W	ITE (Commercial)	SCP	84 %	Module	15 V	24-DIP Module 7 Leads	Through Hole		9 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	2	85 °C	-40 °C	18 V	1.5 kV	Isolated Module	-15 V
Traco Power TEN 5-1210	4 W	ITE (Commercial)	SCP	77 %	Module	3.3 V	24-DIP Module 7 Leads	Through Hole	1.2 A	9 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	1	85 °C	-40 °C	18 V	1.5 kV	Isolated Module
Traco Power TEN 5-2423WI	6 W	ITE (Commercial)	SCP		Module	15 V	24-DIP Module 7 Leads	Through Hole		9 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	2	85 °C	-40 °C	36 V	1.5 kV	Isolated Module	-15 V
Traco Power TEN 5-4821	5 W	ITE (Commercial)	SCP	83 %	Module	5 V	24-DIP Module 7 Leads	Through Hole		36 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	2	85 °C	-40 °C	75 V	1.5 kV	Isolated Module	-5 V	500 mA	500 mA
Traco Power TEN 5-0510	4 W	ITE (Commercial)	SCP	75 %	Module	3.3 V	24-DIP Module 7 Leads	Through Hole	1.2 A	4.5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	1	85 °C	-40 °C	7 V	1.5 kV	Isolated Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 30.50
		10	$ 27.18
		25	$ 26.28
		50	$ 25.62
		100	$ 24.98
		250	$ 24.15
		500	$ 21.38

Description

General part information

TEN 5 Series

Isolated Module DC DC Converter 1 Output 15V 400mA 9V - 36V Input
