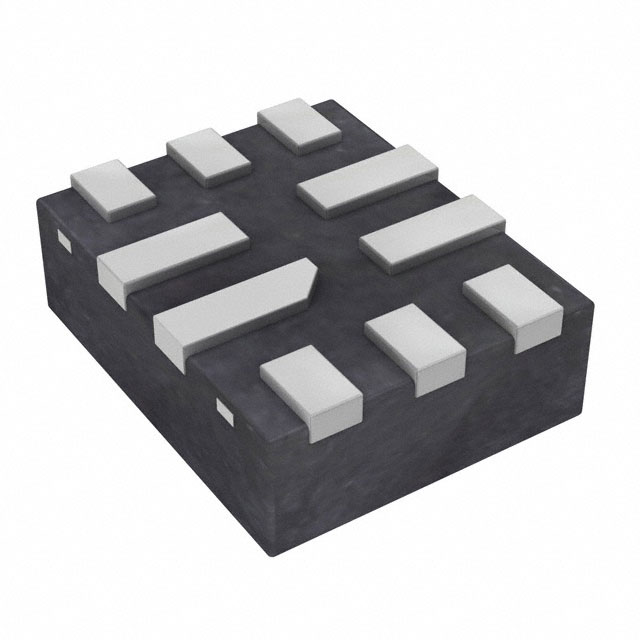

74AXP2T08GU10X

Obsolete

Freescale Semiconductor - NXP

IC GATE AND 2CH 2-INP 10XQFN

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC GATE AND 2CH 2-INP 10XQFN

Technical Specifications

Parameters and characteristics for this part

Specification	74AXP2T08GU10X

Current - Output High, Low [custom]	12 mA
Current - Output High, Low [custom]	12 mA
Logic Type	AND Gate
Max Propagation Delay @ V, Max CL	6.5 ns
Mounting Type	Surface Mount
Number of Circuits	2
Number of Inputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-XFQFN
Supplier Device Package	10-XQFN (1.3x1.6)
Voltage - Supply [Max]	5.5 V, 2.75 V
Voltage - Supply [Min]	0.7 V, 1.2 V

Part	Number of Inputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Circuits	Package / Case	Logic Type	Supplier Device Package	Max Propagation Delay @ V, Max CL	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Package / Case [x]	Package / Case [x]	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Current - Quiescent (Max) [Max]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Grade	Qualification
Freescale Semiconductor - NXP 74AXP2T08GFX	2	Surface Mount	85 °C	-40 °C	12 mA	12 mA	2	10-XFDFN	AND Gate	10-XSON (1.7x1)	6.5 ns	0.7 V 1.2 V	2.75 V 5.5 V
Freescale Semiconductor - NXP 74AXP2T08GU10X	2	Surface Mount	85 °C	-40 °C	12 mA	12 mA	2	10-XFQFN	AND Gate	10-XQFN (1.3x1.6)	6.5 ns	0.7 V 1.2 V	2.75 V 5.5 V
Freescale Semiconductor - NXP 74AXP2T08DPJ	2	Surface Mount	85 °C	-40 °C	12 mA	12 mA	2	10-MSOP 10-TFSOP	AND Gate		6.5 ns	0.7 V	2.75 V	Schmitt Trigger	3 mm	0.118 in	0.35 V	0.8 V	500 nA	1.05 V	3.7 V
Freescale Semiconductor - NXP 74AXP2T08DP-Q100J	2	Surface Mount	125 °C	-40 °C	12 mA	12 mA	2	10-MSOP 10-TFSOP	AND Gate		6.5 ns	0.7 V	2.75 V	Schmitt Trigger	3 mm	0.118 in	0.35 V	0.8 V	500 nA	1.05 V	3.7 V	Automotive	AEC-Q100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AND Gate IC 2 Channel 10-XQFN (1.3x1.6)
