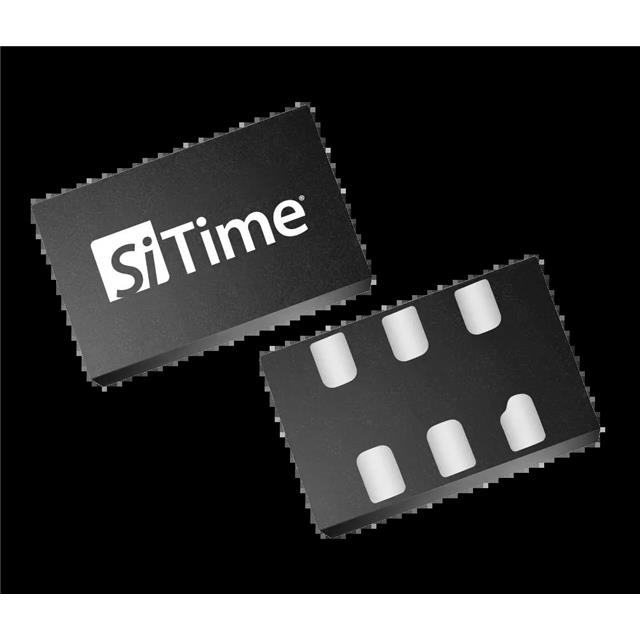

SIT9346AI-4C1A33E100.000000

Active

SiTime

MEMS OSC XO 100.000000 MHZ HCSL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SIT9346AI-4C1A33E100.000000

Active

SiTime

MEMS OSC XO 100.000000 MHZ HCSL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT9346AI-4C1A33E100.000000

Base Resonator	MEMS
Current - Supply (Disable) (Max) [Max]	58 mA
Current - Supply (Max) [Max]	89 mA
Frequency	100 MHz
Frequency Stability	20 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	HCSL
Package / Case	6-SMD, No Lead Exposed Pad
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	XO (Standard)
Voltage - Supply	3.3 V

SIT9346 Series

Part	Base Resonator	Voltage - Supply	Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Supply (Max) [Max]	Function	Frequency	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Stability	Package / Case	Current - Supply (Disable) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Supplier Device Package
SiTime SIT9346AE-1C2A25E156.000000	MEMS	2.5 V	LVPECL	0.197 in	0.126 "	3.2 mm	5 mm	89 mA	Enable/Disable	156 MHz	Surface Mount	0.035 "	0.9 mm	25 ppm	6-SMD No Lead Exposed Pad	58 mA	-40 °C	105 ░C	XO (Standard)
SiTime SIT9346AC-1BFA33N25.000000	MEMS	3.3 V	LVPECL	0.126 in	0.098 in	2.5 mm	3.2 mm	89 mA		25 MHz	Surface Mount	0.035 "	0.9 mm	10 ppm	6-SMD No Lead		-20 C	70 °C	XO (Standard)	6-PQFD (3.2x2.5)
SiTime SIT9346AI-4C1A33E100.000000	MEMS	3.3 V	HCSL	0.197 in	0.126 "	3.2 mm	5 mm	89 mA	Enable/Disable	100 MHz	Surface Mount	0.035 "	0.9 mm	20 ppm	6-SMD No Lead Exposed Pad	58 mA	-40 °C	85 °C	XO (Standard)
SiTime SIT9346AE-2C3A33E200.000000	MEMS	3.3 V	LVDS	0.197 in	0.126 "	3.2 mm	5 mm	79 mA	Enable/Disable	200 MHz	Surface Mount	0.035 "	0.9 mm	50 ppm	6-SMD No Lead Exposed Pad	58 mA	-40 °C	105 ░C	XO (Standard)
SiTime SIT9346AI-2B2A33E200.000000	MEMS	3.3 V	LVDS	0.126 in	0.098 in	2.5 mm	3.2 mm	79 mA	Enable/Disable	200 MHz	Surface Mount	0.035 "	0.9 mm	25 ppm	6-SMD No Lead	58 mA	-40 °C	85 °C	XO (Standard)
SiTime SIT9346AI-2EFA33E100.000000	MEMS	3.3 V	LVDS	0.276 "	0.197 "	5 mm	7 mm	79 mA	Enable/Disable	100 MHz	Surface Mount	0.035 "	0.9 mm	10 ppm	6-SMD No Lead Exposed Pad	58 mA	-40 °C	85 °C	XO (Standard)
SiTime SIT9346AI-2BFA33E40.000000	MEMS	3.3 V	LVDS	0.126 in	0.098 in	2.5 mm	3.2 mm	79 mA	Enable/Disable	40 MHz	Surface Mount	0.035 "	0.9 mm	10 ppm	6-SMD No Lead	58 mA	-40 °C	85 °C	XO (Standard)	6-PQFD (3.2x2.5)
SiTime SIT9346AI-2E1A25E125.000000	MEMS	2.5 V	LVDS	0.276 "	0.197 "	5 mm	7 mm	79 mA	Enable/Disable	125 MHz	Surface Mount	0.035 "	0.9 mm	20 ppm	6-SMD No Lead Exposed Pad	58 mA	-40 °C	85 °C	XO (Standard)
SiTime SIT9346AI-2B1A33E40.000000	MEMS	3.3 V	LVDS	0.126 in	0.098 in	2.5 mm	3.2 mm	79 mA	Enable/Disable	40 MHz	Surface Mount	0.035 "	0.9 mm	20 ppm	6-SMD No Lead	58 mA	-40 °C	85 °C	XO (Standard)	6-PQFD (3.2x2.5)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10	$ 31.41

Description

General part information

SIT9346 Series

100 MHz XO (Standard) HCSL Oscillator 3.3V Enable/Disable 6-SMD, No Lead Exposed Pad

Documents

Technical documentation and resources
