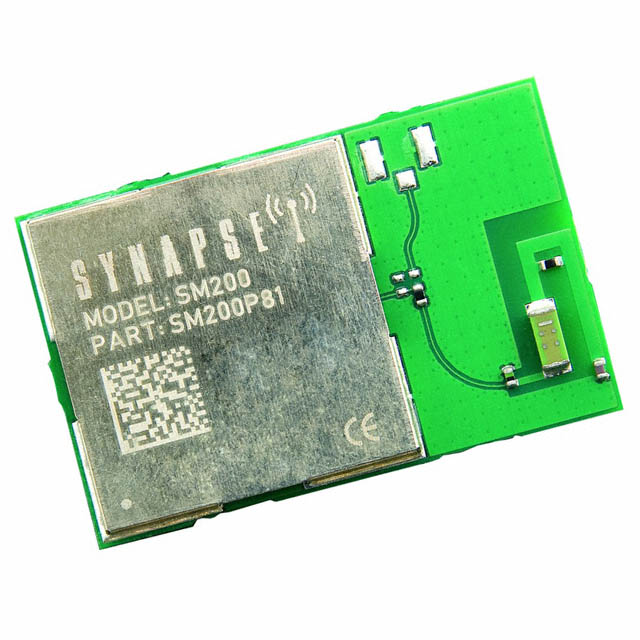

SM200P81
ActiveSynapse Wireless
RF TXRX MOD 802.15.4 CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM200P81
ActiveSynapse Wireless
RF TXRX MOD 802.15.4 CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM200P81 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 20.5 mA |
| Current - Transmitting | 22.5 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 128 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 3 dBm |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -100 dBm |
| Serial Interfaces | UART |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 27.00 | |
| 10 | $ 24.92 | |||
| 25 | $ 24.38 | |||
| Digi-Reel® | 1 | $ 27.00 | ||
| 10 | $ 24.92 | |||
| 25 | $ 24.38 | |||
| Tape & Reel (TR) | 500 | $ 24.38 | ||
Description
General part information
SM200 Series
802.15.4 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
