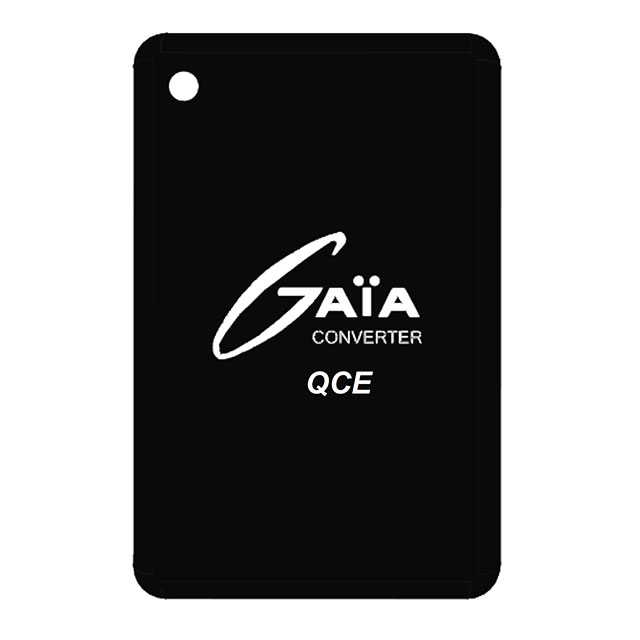

MGDSK10HB
ActiveGaia Converter
DC DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGDSK10HB
ActiveGaia Converter
DC DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDSK10HB |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 80 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5 Leads, 8-DIP Module |
| Power (Watts) | 6.6 W |
| Size / Dimension [x] | 40.3 mm |
| Size / Dimension [x] | 1.58 " |
| Size / Dimension [y] | 26.3 mm |
| Size / Dimension [y] | 1.03 in |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 94.76 | |
| 6 | $ 90.83 | |||
| 12 | $ 89.36 | |||
| 27 | $ 87.66 | |||
| 51 | $ 86.35 | |||
| 102 | $ 84.94 | |||
Description
General part information
MGDSK10 Series
Isolated Module DC DC Converter 1 Output 3.3V 2A 9V - 36V Input
