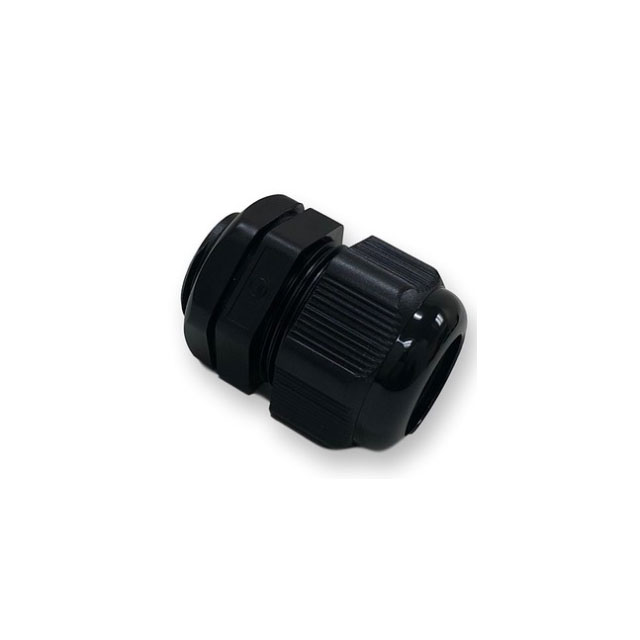

CGM20N63

Active

Switchcraft Inc.

CABLE GLAND 8-16MM M20 THERMOPL

Search across all available documentation for this part.

Active

Switchcraft Inc.

CABLE GLAND 8-16MM M20 THERMOPL

Technical Specifications

Parameters and characteristics for this part

Specification	CGM20N63

Color	Black
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Thermoplastic
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.63 "
Outside Cable Diameter (Max) [Max] [diameter]	16 mm
Outside Cable Diameter (Min) [Min] [diameter]	8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.315 in
Thread Length	0.39 in
Thread Length	9.91 mm
Thread Size	M20x1.5
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Type	Thread Length	Thread Length	Color	Ingress Protection	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Switchcraft Inc. CGM20N63	100 °C	-40 °C	Thermoplastic	Cable Gland	0.39 in	9.91 mm	Black	IP68 - Dust Tight Waterproof	M20x1.5	0.63 "	16 mm	O-Ring Seal	8 mm	0.315 in
Switchcraft Inc. CGM20N44	100 °C	-40 °C	Thermoplastic	Cable Gland	0.39 in	9.91 mm	Black	IP68 - Dust Tight Waterproof	M20x1.5	0.441 "	11.2 mm	O-Ring Seal	5.5 mm	0.217 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Thermoplastic M20x1.5 Black
