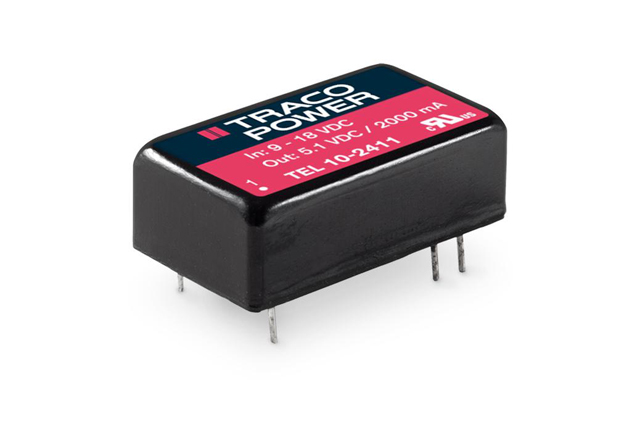

TEL 10-2422

Active

Traco Power

DC DC CONVERTER +/-12V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEL 10-2422

Active

Traco Power

DC DC CONVERTER +/-12V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEL 10-2422

Applications	ITE (Commercial)
Current - Output (Max) [Max]	416 mA
Efficiency	87 %
Features	OCP, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-DIP Module
Package / Case	6 Leads
Power (Watts)	10 W
Size / Dimension [x]	23.8 mm
Size / Dimension [x]	0.94 in
Size / Dimension [y]	0.54 "
Size / Dimension [y]	13.7 mm
Size / Dimension [z]	0.31 in
Size / Dimension [z]	8 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1800 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

TEL 10 Series

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Applications	Mounting Type	Package / Case	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Efficiency	Voltage - Output 2
Traco Power TEL 10-1211	18 V	2 A	5.1 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	1	9 V	1800 V	OCP SCP	-40 °C	78 °C	10 W
Traco Power TEL 10-4810WI	75 V	2.7 A	3.3 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	1	18 V	1.5 kV	SCP	-40 °C	80 ¯C	8.9 W	80 %
Traco Power TEL 10-2412	36 V	833 mA	12 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	1	18 V	1800 V	OCP SCP	-40 °C	85 °C	10 W	87 %
Traco Power TEL 10-4812	75 V	833 mA	12 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	1	36 V	1800 V	OCP SCP	-40 °C	85 °C	10 W	87 %
Traco Power TEL 10-2422	36 V	416 mA	12 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	2	18 V	1800 V	OCP SCP	-40 °C	85 °C	10 W	87 %	-12 V
Traco Power TEL 10-4812WI	75 V	833 mA	12 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	1	18 V	1.5 kV	SCP	-40 °C	88 °C	10 W	87 %
Traco Power TEL 10-2415	36 V	416 mA	24 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	1	18 V	1800 V	OCP SCP	-40 °C	85 °C	10 W	88 %
Traco Power TEL 10-4810	75 V	2.7 A	3.3 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	1	36 V	1800 V	OCP SCP	-40 °C	78 °C	8.9 W	80 %
Traco Power TEL 10-4815	75 V	416 mA	24 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	1	36 V	1800 V	OCP SCP	-40 °C	85 °C	10 W	88 %
Traco Power TEL 10-4822WI	75 V	416 mA	12 V	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	Isolated Module	ITE (Commercial)	Through Hole	16-DIP Module	6 Leads	2	18 V	1.5 kV	SCP	-40 °C	88 °C	10 W	87 %	-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 29.70
		10	$ 27.30
		25	$ 26.40
		50	$ 25.74
		100	$ 25.09
		250	$ 24.26
		500	$ 21.48

Description

General part information

TEL 10 Series

Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 18V - 36V Input
