5962-9450901QKA
ActiveMILITARY 10-CH, 4.5-V TO 5.5-V BUFFERS WITH TTL-COMPATIBLE CMOS INPUTS AND 3-STATE OUTPUTS
Deep-Dive with AI
Search across all available documentation for this part.
5962-9450901QKA
ActiveMILITARY 10-CH, 4.5-V TO 5.5-V BUFFERS WITH TTL-COMPATIBLE CMOS INPUTS AND 3-STATE OUTPUTS
Technical Specifications
Parameters and characteristics for this part
| Specification | 5962-9450901QKA |
|---|---|
| Current - Output High, Low [custom] | 24 mA |
| Current - Output High, Low [custom] | 48 mA |
| Grade | Military |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 10 |
| Number of Elements | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | 3-State |
| Qualification | MIL-PRF-38535L |

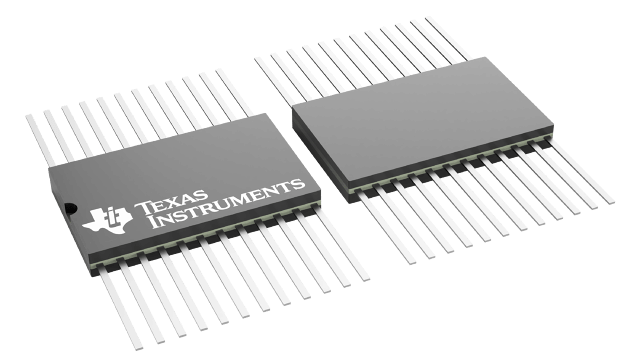

| Supplier Device Package | 24-CFP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3 | $ 109.89 | |
| Texas Instruments | TUBE | 1 | $ 133.85 | |
| 100 | $ 118.98 | |||
| 250 | $ 97.81 | |||
| 1000 | $ 87.49 | |||
Description
General part information
5962-9450901 Series
These 10-bit buffers or bus drivers provide a high-performance bus interface for wide data paths or buses carrying parity.
The 3-state control gate is a 2-input AND gate with active-low inputs so that if either output-enable (OE1\ or OE2\) input is high, all ten outputs are in the high-impedance state. The 'ABT827 provide true data at the outputs.
When VCCis between 0 and 2.1 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1 V, OE\ should be tied to VCCthrough a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
