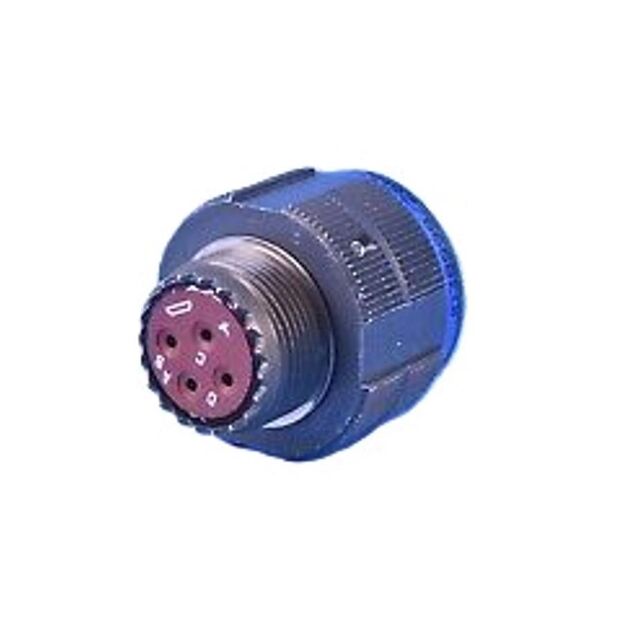

D38999/20KE99PBL

Active

Corsair

D38999 SER III RECEPTACLE

Search across all available documentation for this part.

Active

Corsair

D38999 SER III RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20KE99PBL

Connector Type	Receptacle Housing
Contact Type	Crimp
Housing Color	Silver
Includes	1 pc - 1 Insert Shell
Ingress Protection	Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	23
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Shell Size, MIL	E
Type	For Female Sockets

Part	Material Flammability Rating	Number of Positions	Shell Size, MIL	Orientation	Mounting Feature	Insert Material	Housing Color	Type	Connector Type	Includes	Note	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Ingress Protection	Current Rating (Amps)	Termination	Shell Finish	Applications	Shielding	Contact Finish - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Contact Material	Qualification	Grade	Shell Size - Insert	Color
Corsair D38999/20KE26SAL
Corsair D38999/20KE99PBL	UL94 V-0	23	E	N	Flange	Thermoplastic	Silver	For Female Sockets	Receptacle Housing	1 pc - 1 Insert Shell	Contacts Not Included	Crimp	-65 ░C	200 °C	Metal	Waterproof
Corsair D38999/20KE26SB		26	E	B	Flange	Thermoplastic			Receptacle Female Sockets				-65 ░C	200 °C	Metal	IP67 - Dust Tight Waterproof	7.5 A	Crimp	Passivated	Aviation Marine Military	Shielded	Gold	17	26	1.27 µm	50 µin	Stainless Steel	Copper Alloy
Corsair D38999/20KE26SBL
Corsair D38999/20KE8SB	UL94 V-0	8	E	B	Flange	Thermoplastic			Receptacle Female Sockets				-65 ░C	125 °C	Metal	Waterproof	13 A	Crimp	Passivated	Aerospace Aviation Military	Shielded	Gold			1.27 µm	50 µin	Stainless Steel	Copper Alloy	MIL-DTL-38999 Series III	Military	17-8	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

23 Position Circular Connector Receptacle Housing Panel Mount
