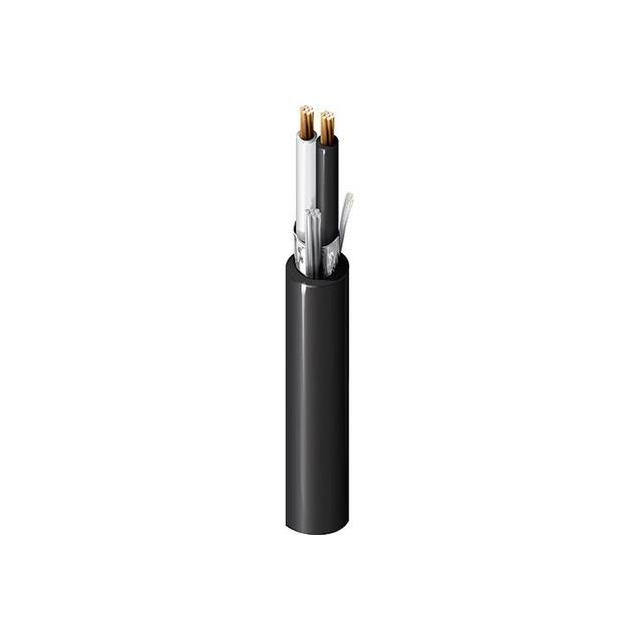

1089A 0101250

Active

Belden Inc.

MULTI-PAIR 72COND 16AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 72COND 16AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1089A 0101250

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	24
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	1.297 in
Jacket (Insulation) Diameter [diameter]	32.94 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.084 in
Jacket (Insulation) Thickness	2.134 mm
Jacket Color	Black
Length [x]	381 m
Length [x]	1250 ft
Number of Conductors	72
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	16 AWG

Part	Features	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Shield Coverage	Shield Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Length [x]	Length [x]	Cable Type	Shield Type	Jacket Color	Jacket (Insulation) Material	Length	Length
Belden Inc. 1089A 0101250	Drain Wire Rip Cord	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	7	24	1.297 in	32.94 mm	72	100 %	Aluminum	16 AWG	0.084 in	2.134 mm	Copper Bare	381 m	1250 ft	Multi-Pair	Foil	Black	Poly-Vinyl Chloride (PVC)
Belden Inc. 1089A 0102500	Drain Wire Rip Cord	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	7	24	1.297 in	32.94 mm	72	100 %	Aluminum	16 AWG	0.084 in	2.134 mm	Copper Bare			Multi-Pair	Foil	Black	Poly-Vinyl Chloride (PVC)	2500 ft	762 m
Belden Inc. 1089A 0105000	Drain Wire Rip Cord	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	7	24	1.297 in	32.94 mm	72	100 %	Aluminum	16 AWG	0.084 in	2.134 mm	Copper Bare			Multi-Pair	Foil	Black	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1250	$ 25.83

General part information

72 (36 Pair Twisted) Conductor Multi-Pair Cable Black 16 AWG Foil 1250.0' (381.0m)
