TE3-1A-DC-1-AL

Active

Switch Components

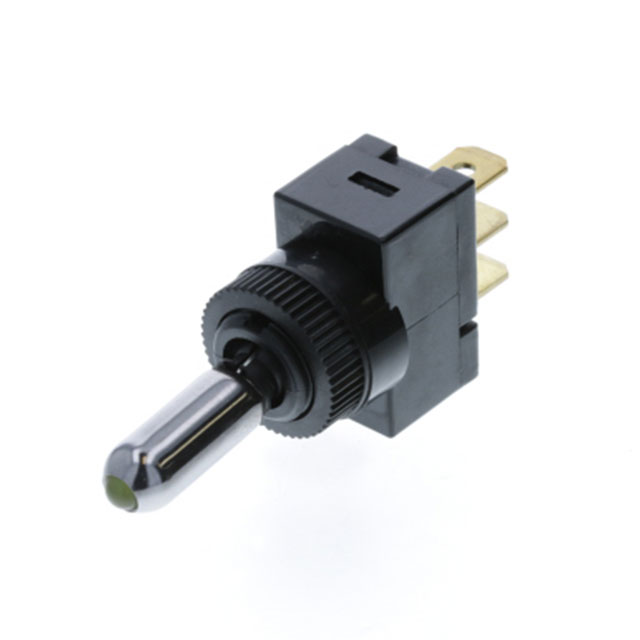

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS

Search across all available documentation for this part.

Active

Switch Components

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	TE3-1A-DC-1-AL

Actuator Length [x]	19.3 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Illuminated
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	12 VDC
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

Part	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Actuator Length [x]	Illumination	Panel Cutout Dimensions [diameter]	Actuator Type	Circuit	Bushing Thread	Bushing Thread	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Illumination Voltage (Nominal)	Switch Function	Actuator Material
Switch Components TE3-1A-DC-1-AL	12 V	Quick Connect - 0.250" (6.3mm)	20 A	19.3 mm	Illuminated	12.2 mm	Standard Round	SPST	M12	1 x 1	Amber LED	-25 °C	85 °C	6000 Cycles	12 VDC	On-Off	Nylon Polyamide (PA)
Switch Components TE3-1A-DC-1-UL	12 V	Quick Connect - 0.250" (6.3mm)	20 A	19.3 mm	Illuminated	12.2 mm	Standard Round	SPST	M12	1 x 1	Blue LED	-25 °C	85 °C	6000 Cycles	12 VDC	On-Off	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
