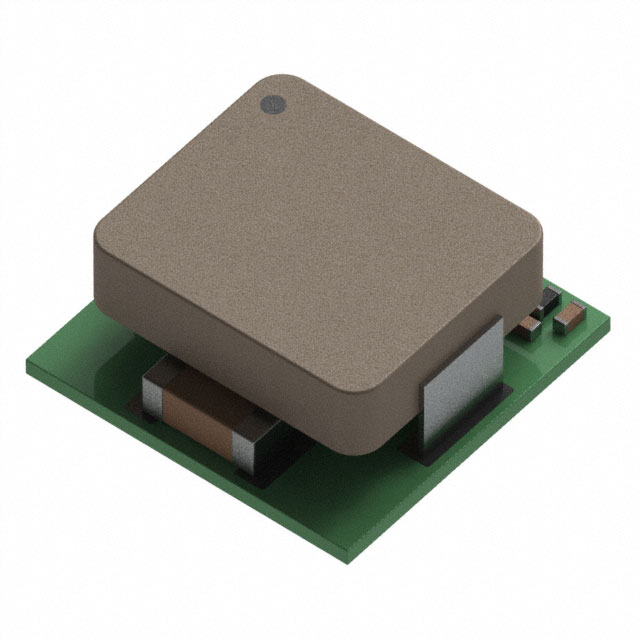

MUN24AD03-SM
ActiveDelta Electronics/Cyntec
DC DC CONVERTER 5-12V
Deep-Dive with AI
Search across all available documentation for this part.
MUN24AD03-SM
ActiveDelta Electronics/Cyntec
DC DC CONVERTER 5-12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MUN24AD03-SM |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 94 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Supplier Device Package | 25-QFN (6x6) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 34 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output 1 [Max] | 12 V |
| Voltage - Output 1 [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.19 | |
| 5 | $ 6.10 | |||
| 10 | $ 6.01 | |||
| 25 | $ 5.83 | |||
| 50 | $ 5.66 | |||
| 100 | $ 5.48 | |||
| 250 | $ 5.30 | |||
| 500 | $ 4.95 | |||
| Digi-Reel® | 1 | $ 6.19 | ||
| 5 | $ 6.10 | |||
| 10 | $ 6.01 | |||
| 25 | $ 5.83 | |||
| 50 | $ 5.66 | |||
| 100 | $ 5.48 | |||
| 250 | $ 5.30 | |||
| 500 | $ 4.95 | |||
| Tape & Reel (TR) | 1000 | $ 4.95 | ||
Description
General part information
MUN24AD03 Series
Non-Isolated PoL Module DC DC Converter 1 Output 5 ~ 12V 3A 8V - 34V Input
Documents
Technical documentation and resources
No documents available
