VER36US120-JA

Active

XP POWER

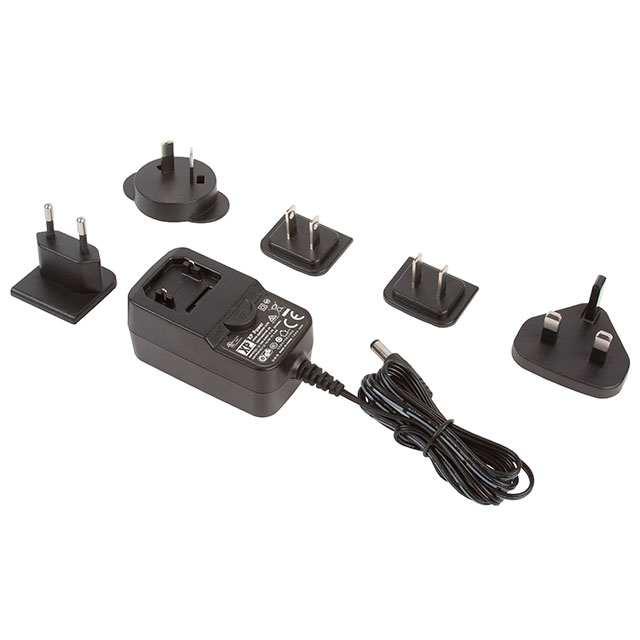

AC/DC WALL MOUNT ADAPTER 12V 36W

Search across all available documentation for this part.

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 12V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	VER36US120-JA

Applications	ITE (Commercial)
Approval Agency	CB, CCC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	3 A
Efficiency	Level VI, CoC Tier 1
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Included)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [z]	12 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	94.5 mm
Size / Dimension [x]	3.72 in
Size / Dimension [y]	47 mm
Size / Dimension [y]	1.85 "
Size / Dimension [z]	43.5 mm
Size / Dimension [z]	1.71 in
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight	0.333 lb
Weight	151.05 g

Part	Input Type	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Input Connector	Efficiency	Weight	Weight	No Load Power Consumption [Max]	Region Utilized	Applications	Approval Agency	Standard Number	Form	Voltage - Output	Cord Length	Cord Length	Polarization	Operating Temperature [Max]	Output Connector	Output Connector [diameter]	Output Connector [z]	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]
XP POWER VER36US120-JA	Multi-Blade (Included)	3 A	47 mm	94.5 mm	43.5 mm	1.85 "	3.72 in	1.71 in	Multi-Blade	CoC Tier 1 Level VI	0.333 lb	151.05 g	75 mW	International	ITE (Commercial)	CB CCC	62368-1	Wall Mount (Class II)	12 V	1.5 m	59 in	Positive Center	60 °C	Barrel Plug	2.1 mm 5.5 mm	12 mm	36 W	90 VAC	264 VAC
XP POWER VER36US150-JA	Multi-Blade (Included)	2.4 A	47 mm	94.5 mm	43.5 mm	1.85 "	3.72 in	1.71 in	Multi-Blade	CoC Tier 2 Level VI	0.333 lb	151.05 g	75 mW	International	ITE (Commercial)	CB CCC	62368-1	Wall Mount (Class II)	15 VDC	1.5 m	59 in	Positive Center	60 °C	Barrel Plug	2.1 mm 5.5 mm	12 mm	36 W	90 VAC	264 VAC
XP POWER VER36US180-JA	Multi-Blade (Included)	2 A	47 mm	94.5 mm	43.5 mm	1.85 "	3.72 in	1.71 in	Multi-Blade	CoC Tier 2 Level VI	0.333 lb	151.05 g	75 mW	International	ITE (Commercial)	CB CCC	62368-1	Wall Mount (Class II)	18 V	1.5 m	59 in	Positive Center	60 °C	Barrel Plug	2.1 mm 5.5 mm	12 mm	36 W	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 36 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
