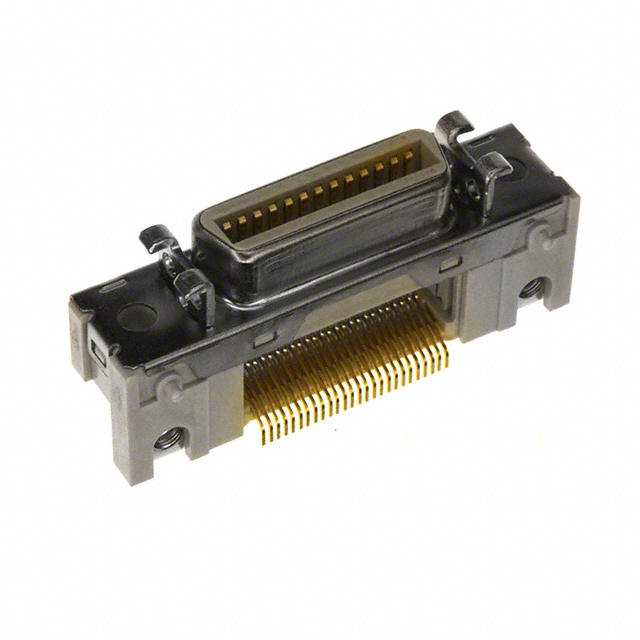

D SUB CONNECTOR, 26 CONTACTS, RECEPTACLE, SURFACE MOUNT, 102 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMDR Series Qualification Report Datasheet +4

10226-1A10PE

Active

3M (TC)

D SUB CONNECTOR, 26 CONTACTS, RECEPTACLE, SURFACE MOUNT, 102 SERIES

Deep-Dive with AI

DocumentsMDR Series Qualification Report Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10226-1A10PE

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Features	Shielded, Board Guide
Flange Feature	Housing/Shell
Flange Feature	2.6 M
Mounting Type	Surface Mount, Right Angle
Number of Positions	26
Number of Rows	2
Termination	Solder

10226 Series

Part	Connector Type	Number of Rows	Connector Style	Contact Finish	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Features	Number of Positions
3M (TC) 10226-1A10PL	Receptacle	2	Outer Shroud Contacts	Gold	Surface Mount Right Angle	Solder	0.51 µm	20 µin	Housing/Shell	2.6 M	Board Guide Shielded	26
3M (TC) 10226-R21CS	Receptacle	2	Outer Shroud Contacts	Gold	Panel Mount Through Hole	Press-Fit	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Shielded	26
3M (TC) 10226-6212VC	Receptacle	2	Outer Shroud Contacts	Gold	Panel Mount Through Hole	Solder	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Shielded	26
3M (TC) 10226-1A10PE	Receptacle	2	Outer Shroud Contacts	Gold	Surface Mount Right Angle	Solder	0.51 µm	20 µin	Housing/Shell	2.6 M	Board Guide Shielded	26
3M (TC) 10226-55G3PL	Receptacle	2	Outer Shroud Contacts	Gold	Panel Mount Right Angle Through Hole	Solder	0.203 çm	8 çin	Housing/Shell	2.6 M	Board Lock Shielded	26
3M (TC) 10226-6202PC	Receptacle	2	Outer Shroud Contacts	Gold	Panel Mount Through Hole	Solder	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Shielded	26
3M (TC) 10226-1A10PC	Receptacle	2	Outer Shroud Contacts	Gold	Surface Mount Right Angle	Solder	0.51 µm	20 µin	Housing/Shell	2.6 M	Board Guide Shielded	26
3M (TC) 10226-1210PE	Receptacle	2	Outer Shroud Contacts	Gold	Surface Mount Right Angle	Solder	0.51 µm	20 µin	Housing/Shell	2.6 M	Board Guide Shielded	26
3M (TC) 10226-55F3PC	Receptacle	2	Outer Shroud Contacts	Gold	Panel Mount Right Angle Through Hole	Solder	0.76 Ám	30 Áin	Latchblocks		Board Lock Shielded	26
3M (TC) 10226-1210VE	Receptacle	2	Outer Shroud Contacts	Gold	Surface Mount Right Angle	Solder	0.76 Ám	30 Áin	Housing/Shell	2.6 M	Board Guide Shielded	26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.67
		10	$ 8.71
		25	$ 8.20
		40	$ 7.99
		100	$ 7.78
		300	$ 6.94
		500	$ 6.52
		1000	$ 5.76
Newark	Each	100	$ 8.33
		250	$ 7.45
		500	$ 7.03
		1000	$ 6.14

Description

General part information

10226 Series

The 102 series 0.05-inch Mini D Ribbon (MDR) Connector with board-mount thru-hole right angle shielded receptacle. It has copper alloy contact with 30-micro-inch minimum gold wiping area, nickel under-plate plating and glass reinforced polyester insulation.
