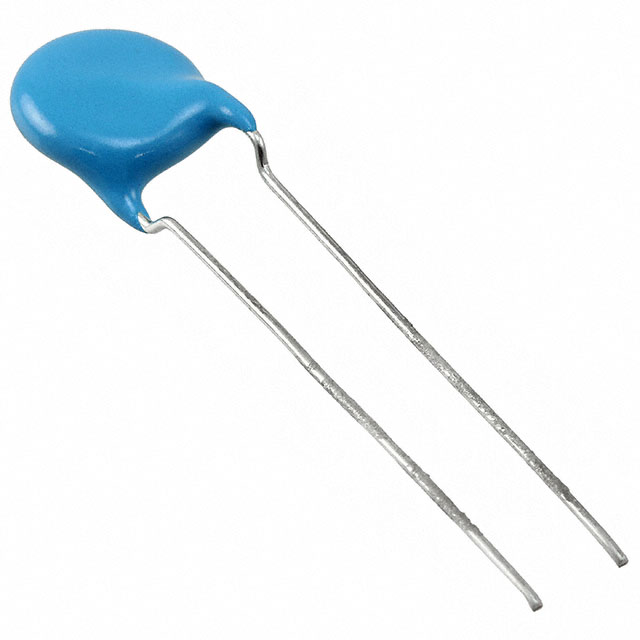

DE2E3KY472MB2BM01F

Obsolete

Murata Power Solutions Inc.

CAP CER 4700PF 250VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKH Type Spec Datasheet

DE2E3KY472MB2BM01F

Obsolete

Murata Power Solutions Inc.

CAP CER 4700PF 250VAC RADIAL

Deep-Dive with AI

DocumentsKH Type Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DE2E3KY472MB2BM01F

Applications	Safety
Capacitance	4700 pF
Features	Safety Series X1Y2
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings [custom]	2
Ratings [custom]	1
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Temperature Coefficient	E
Tolerance	20 %
Voltage - Rated	250 VAC

DE2E3KY Series

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Temperature Coefficient	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Style	Mounting Type	Ratings [custom]	Ratings [custom]	Package / Case	Features	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Murata Power Solutions Inc. DE2E3KY102MB3BU02F	7 mm	0.276 in	20 %	E	300 VAC	125 °C	-40 °C	0.001 µF	0.394 in	10 mm	Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	7.5 mm	0.295 in	Safety
Murata Power Solutions Inc. DE2E3KY102MN2AM01F	7 mm	0.276 in	20 %	E	250 VAC	125 °C	-40 °C	0.001 µF	0.394 in	10 mm	Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	5 mm	0.197 in	Safety
Murata Power Solutions Inc. DE2E3KY222MA2BM01F	8 mm	0.315 "	20 %	E	250 VAC	125 °C	-40 °C	2200 pF			Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	5 mm	0.197 in	Safety	11 mm	0.433 in
Murata Power Solutions Inc. DE2E3KY102MA2BM01	7 mm	0.276 in	20 %	E	250 VAC	125 °C	-40 °C	0.001 µF	0.394 in	10 mm	Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	5 mm	0.197 in	Safety
Murata Power Solutions Inc. DE2E3KY472MB2BM01F	10 mm	0.394 in	20 %	E	250 VAC	125 °C	-40 °C	4700 pF			Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	5 mm	0.197 in	Safety	13 mm	0.512 "
Murata Power Solutions Inc. DE2E3KY222MN2AM01	8 mm	0.315 "	20 %	E	250 VAC	125 °C	-40 °C	2200 pF			Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	5 mm	0.197 in	Safety	11 mm	0.433 in
Murata Power Solutions Inc. DE2E3KY102MJ3BM02F	7 mm	0.276 in	20 %	E	250 VAC	125 °C	-40 °C	0.001 µF	0.394 in	10 mm	Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	7.5 mm	0.295 in	Safety
Murata Power Solutions Inc. DE2E3KY332MA3BM02F	9 mm	0.354 in	20 %	E	250 VAC	125 °C	-40 °C	3300 pF			Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	7.5 mm	0.295 in	Safety	12 mm	0.472 "
Murata Power Solutions Inc. DE2E3KY472MJ3BM02F	10 mm	0.394 in	20 %	E	250 VAC	125 °C	-40 °C	4700 pF			Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	7.5 mm	0.295 in	Safety	13 mm	0.512 "
Murata Power Solutions Inc. DE2E3KY472MJ2BM01F	10 mm	0.394 in	20 %	E	250 VAC	125 °C	-40 °C	4700 pF			Straight	Through Hole	2	1	Disc Radial	Safety Series X1Y2	5 mm	0.197 in	Safety	13 mm	0.512 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DE2E3KY Series

4700 pF ±20% 250VAC Ceramic Capacitor E Radial, Disc

Documents

Technical documentation and resources

KH Type Spec

Datasheet
