ASMT-AG00-NST00

Obsolete

Broadcom Limited

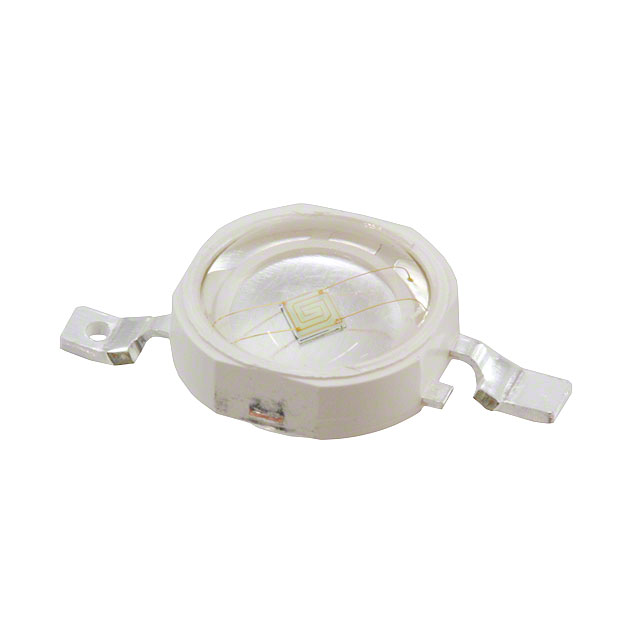

LED GREEN 525NM 1W 2SMD

Search across all available documentation for this part.

Obsolete

Broadcom Limited

LED GREEN 525NM 1W 2SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-AG00-NST00

Color	Green
Current - Max [Max]	500 mA
Current - Test	350 mA
Height - Seated (Max)	4.2 mm
Height - Seated (Max) [Max]	0.165 in
Lumens/Watt @ Current - Test	63 lm/W
Luminous Flux @ Current/Temperature	70 lm
Luminous Flux @ Current/Temperature [Max]	87 lm
Luminous Flux @ Current/Temperature [Min]	52 lm
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Supplier Device Package	2-SMD
Thermal Resistance of Package [diameter]	10 °C/W
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength	525 nm
Wavelength [Max]	535 nm
Wavelength [Min]	515 nm

Part	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Thermal Resistance of Package [diameter]	Wavelength [Min]	Wavelength [Max]	Wavelength	Color	Lumens/Watt @ Current - Test	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Test	Mounting Type	Current - Max [Max]	Viewing Angle	Voltage - Forward (Vf) (Typ)
Broadcom Limited ASMT-AG00-NST00	70 lm	87 lm	52 lm	10 °C/W	515 nm	535 nm	525 nm	Green	63 lm/W	2-SMD	0.165 in	4.2 mm	2-SMD Gull Wing Exposed Pad	0.315 "	8 mm	350 mA	Surface Mount	500 mA	140 °	3.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color - Green 525nm (515nm ~ 535nm) 2-SMD, Gull Wing Exposed Pad
