09142203013

Active

HARTING Technology Group

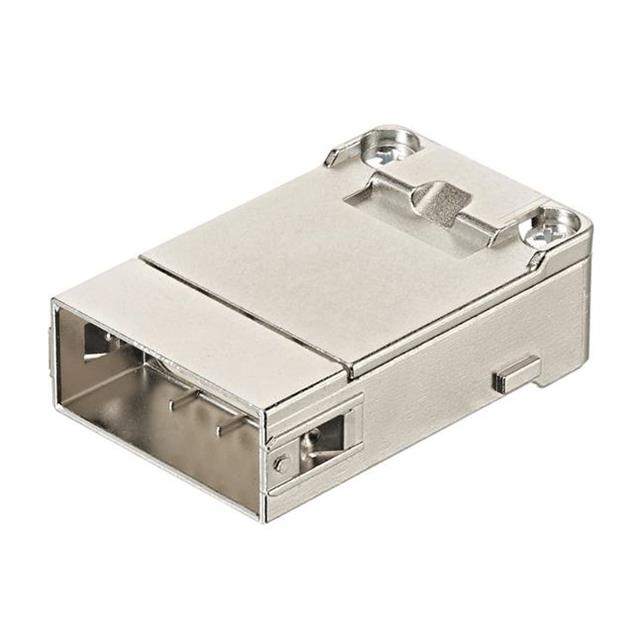

SHIELDED MODULE 20PIN MALE INSERT - HIGH MATING CYCLE VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

SHIELDED MODULE 20PIN MALE INSERT - HIGH MATING CYCLE VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	09142203013

Connector Type	Module without Contacts
Current Rating (Amps)	4 A
Gender	Male
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Number of Positions	20+Shield
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	32 V

Part	Housing Material	Material Flammability Rating	Connector Type	Voltage Rating	Current Rating (Amps)	Termination Style	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions
HARTING Technology Group 09142203113	Liquid Crystal Polymer (LCP)	UL94 V-0	Module without Contacts	32 V	4 A	Crimp	Female	85 °C	-40 °C	20+Shield
HARTING Technology Group 09142203013	Liquid Crystal Polymer (LCP)	UL94 V-0	Module without Contacts	32 V	4 A	Crimp	Male	85 °C	-40 °C	20+Shield

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module without Contacts 20+Shield Position Crimp
