TB003-500-P16BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.00

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TB003-500-P16BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.00

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TB003-500-P16BE

Clamp Material - Plating	Stainless, Steel
Color	Blue
Contact Material - Plating	Copper Alloy - Tin Plated
Current	10 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	16
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M2.5
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

TB003 Series

Part	Current	Pitch [x]	Pitch [x]	Mating Orientation	Torque - Screw	Torque - Screw	Wire Gauge [Max]	Wire Gauge [Min]	Color	Contact Material - Plating	Screw Material - Plating	Voltage	Screw Thread	Wire Termination	Features	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Clamp Material - Plating	Number of Levels
CUI Devices TB003V-500-P05BE	10 A	5 mm	0.197 in	Vertical with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)	5	-40 °C	105 ░C	Through Hole	Stainless Steel	1
CUI Devices TB003V-500-P12BE	10 A	5 mm	0.197 in	Vertical with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)	12	-40 °C	105 ░C	Through Hole	Stainless Steel	1
CUI Devices TB003-500-P11BE	10 A	5 mm	0.197 in	Horizontal with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)	11	-40 °C	105 ░C	Through Hole	Stainless Steel	1
CUI Devices TB003V-500-P04BE	10 A	5 mm	0.197 in	Vertical with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)	4	-40 °C	105 ░C	Through Hole	Stainless Steel	1
CUI Devices TB003-500-P24BE	10 A	5 mm	0.197 in	Horizontal with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)		-40 °C	105 ░C	Through Hole	Stainless Steel	1
CUI Devices TB003V-500-P06BE	10 A	5 mm	0.197 in	Vertical with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)	6	-40 °C	105 ░C	Through Hole	Stainless Steel	1
CUI Devices TB003-500-P16BE	10 A	5 mm	0.197 in	Horizontal with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)	16	-40 °C	105 ░C	Through Hole	Stainless Steel	1
CUI Devices TB003-500-P10BE	10 A	5 mm	0.197 in	Horizontal with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)	10	-40 °C	105 ░C	Through Hole	Stainless Steel	1
CUI Devices TB003-500-P21BE	10 A	5 mm	0.197 in	Horizontal with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)	21	-40 °C	105 ░C	Through Hole	Stainless Steel	1
CUI Devices TB003-500-P05BE	10 A	5 mm	0.197 in	Horizontal with Board	0.4 Nm	3.5 Lb-In	26 AWG	14 AWG	Blue	Copper Alloy - Tin Plated	Steel Zinc Plated	300 V	M2.5	Screw - Leaf Spring Wire Guard	Interlocking (Side)	5	-40 °C	105 ░C	Through Hole	Stainless Steel	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.60
		10	$ 1.97
		25	$ 1.82
		50	$ 1.64
		100	$ 1.60
		430	$ 1.40
		860	$ 1.20
		1290	$ 1.16
		5160	$ 1.02

Description

General part information

TB003 Series

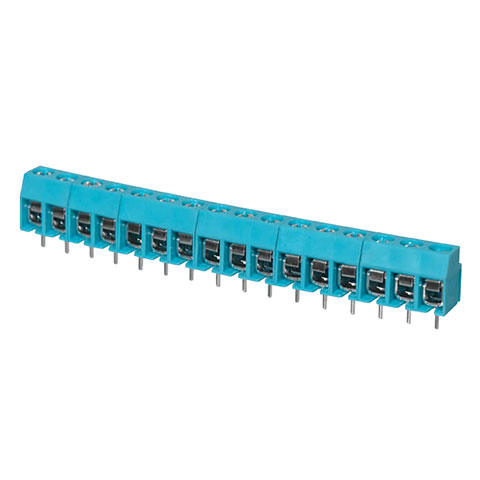

16 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
